通过webApi实现通讯加密功能的方法介绍

public class ApiTestController : ApiController
{
 // GET api/<controller>/5
 public object Get(int id)
 {
 return "value" + id;
 }
}

ApiTestController

 //
 // 摘要:
 // A base type for handlers which only do some small processing of request and/or
 // response messages.

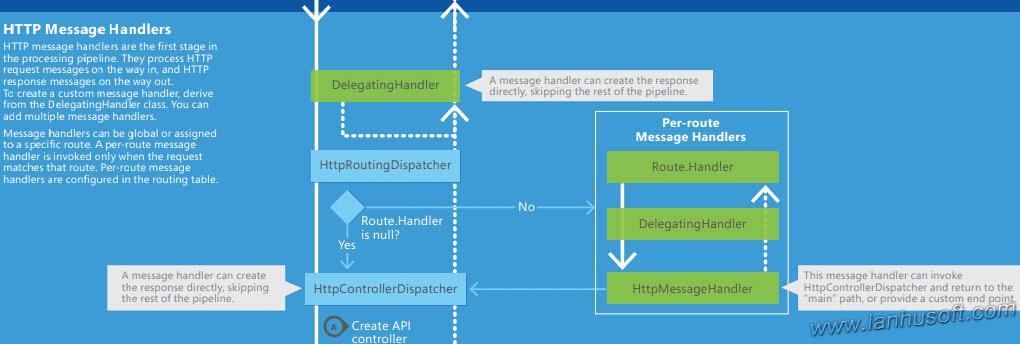

 public abstract class MessageProcessingHandler : DelegatingHandler
 {
 //
 // 摘要:
 // Creates an instance of a System.Net.Http.MessageProcessingHandler class.
 protected MessageProcessingHandler();
 //
 // 摘要:
 // Creates an instance of a System.Net.Http.MessageProcessingHandler class with
 // a specific inner handler.
 //
 // 参数:
 // innerHandler:
 // The inner handler which is responsible for processing the HTTP response messages.
 protected MessageProcessingHandler(HttpMessageHandler innerHandler);

 //
 // 摘要:
 // Performs processing on each request sent to the server.
 //
 // 参数:
 // request:
 // The HTTP request message to process.
 //
 // cancellationToken:
 // A cancellation token that can be used by other objects or threads to receive
 // notice of cancellation.
 //
 // 返回结果:
 // Returns System.Net.Http.HttpRequestMessage.The HTTP request message that was
 // processed.
 protected abstract HttpRequestMessage ProcessRequest(HttpRequestMessage request, CancellationToken cancellationToken);
 //
 // 摘要:
 // Perform processing on each response from the server.
 //
 // 参数:
 // response:
 // The HTTP response message to process.
 //
 // cancellationToken:
 // A cancellation token that can be used by other objects or threads to receive
 // notice of cancellation.
 //
 // 返回结果:
 // Returns System.Net.Http.HttpResponseMessage.The HTTP response message that was
 // processed.
 protected abstract HttpResponseMessage ProcessResponse(HttpResponseMessage response, CancellationToken cancellationToken);
 //
 // 摘要:
 // Sends an HTTP request to the inner handler to send to the server as an asynchronous
 // operation.
 //
 // 参数:
 // request:
 // The HTTP request message to send to the server.
 //
 // cancellationToken:
 // A cancellation token that can be used by other objects or threads to receive
 // notice of cancellation.
 //
 // 返回结果:
 // Returns System.Threading.Tasks.Task`1.The task object representing the asynchronous
 // operation.
 //
 // 异常:
 // T:System.ArgumentNullException:
 // The request was null.
 protected internal sealed override Task<HttpResponseMessage> SendAsync(HttpRequestMessage request, CancellationToken cancellationToken);
 }

MessageProcessingHandler

/// <summary>
 /// 加密解密接口
 /// </summary>
 public interface IMessageEnCryption
 {
 /// <summary>
 /// 加密
 /// </summary>
 /// <param name="content"></param>
 /// <returns></returns>
 string Encode(string content);
 /// <summary>
 /// 解密
 /// </summary>
 /// <param name="content"></param>
 /// <returns></returns>
 string Decode(string content);
 }

IMessageEnCryption

/// <summary>
 /// 加解密 只做 base64
 /// </summary>
 public class MessageEncryptionVersion1_0 : IMessageEnCryption
 {
 public string Decode(string content)
 {
  return content?.DecryptBase64();
 }

 public string Encode(string content)
 {
  return content.EncryptBase64();
 }
 }

MessageEncryptionVersion1_0

/// <summary>
 /// 数据加解密 des
 /// </summary>
 public class MessageEncryptionVersion1_1 : IMessageEnCryption
 {
 public static readonly string KEY = "fHil/4]0";
 public string Decode(string content)
 {
  return content.DecryptDES(KEY);
 }
 public string Encode(string content)
 {
  return content.EncryptDES(KEY);
 }
 }

MessageEncryptionVersion1_1

public static class EncrypExtends
 {
 //默认密钥向量
 private static byte[] Keys = { 0x12, 0x34, 0x56, 0x78, 0x90, 0xAB, 0xCD, 0xEF };
 internal static string Key = "*@&$(@#H";

 //// <summary>
 /// DES加密字符串
 /// </summary>
 /// <param name="encryptString">待加密的字符串</param>
 /// <param name="encryptKey">加密密钥,要求为8位</param>
 /// <returns>加密成功返回加密后的字符串，失败返回源串</returns>
 public static string EncryptDES(this string encryptString, string encryptKey)
 {
  try
  {
  byte[] rgbKey = Encoding.UTF8.GetBytes(encryptKey.Substring(0, 8));
  byte[] rgbIV = Keys;
  byte[] inputByteArray = Encoding.UTF8.GetBytes(encryptString);
  DESCryptoServiceProvider dCSP = new DESCryptoServiceProvider();
  MemoryStream mStream = new MemoryStream();
  CryptoStream cStream = new CryptoStream(mStream, dCSP.CreateEncryptor(rgbKey, rgbIV), CryptoStreamMode.Write);
  cStream.Write(inputByteArray, 0, inputByteArray.Length);
  cStream.FlushFinalBlock();
  return Convert.ToBase64String(mStream.ToArray());
  }
  catch
  {
  return encryptString;
  }
 }
 //// <summary>
 /// DES解密字符串
 /// </summary>
 /// <param name="decryptString">待解密的字符串</param>
 /// <param name="decryptKey">解密密钥,要求为8位,和加密密钥相同</param>
 /// <returns>解密成功返回解密后的字符串，失败返源串</returns>
 public static string DecryptDES(this string decryptString, string key)
 {
  try
  {
  byte[] rgbKey = Encoding.UTF8.GetBytes(key.Substring(0, 8));
  byte[] rgbIV = Keys;
  byte[] inputByteArray = Convert.FromBase64String(decryptString);
  DESCryptoServiceProvider DCSP = new DESCryptoServiceProvider();
  MemoryStream mStream = new MemoryStream();
  CryptoStream cStream = new CryptoStream(mStream, DCSP.CreateDecryptor(rgbKey, rgbIV), CryptoStreamMode.Write);
  cStream.Write(inputByteArray, 0, inputByteArray.Length);
  cStream.FlushFinalBlock();
  return Encoding.UTF8.GetString(mStream.ToArray());
  }
  catch
  {
  return decryptString;
  }
 }
 public static string EncryptBase64(this string encryptString)
 {
  return Convert.ToBase64String(Encoding.UTF8.GetBytes(encryptString));
 }
 public static string DecryptBase64(this string encryptString)
 {
  return Encoding.UTF8.GetString(Convert.FromBase64String(encryptString));
 }
 public static string DecodeUrl(this string cryptString)
 {
  return System.Web.HttpUtility.UrlDecode(cryptString);
 }
 public static string EncodeUrl(this string cryptString)
 {
  return System.Web.HttpUtility.UrlEncode(cryptString);
 }
 }

EncrypExtends

/// <summary>
 /// API消息请求处理
 /// </summary>
 public class JoyMessageHandler : MessageProcessingHandler
 {
 /// <summary>
 /// 接收到request时 处理
 /// </summary>
 /// <param name="request"></param>
 /// <param name="cancellationToken"></param>
 /// <returns></returns>
 protected override HttpRequestMessage ProcessRequest(HttpRequestMessage request, CancellationToken cancellationToken)
 {
  if (request.Content.IsMimeMultipartContent())
  return request;
  // 获取请求头中 api_version版本号
  var ver = System.Web.HttpContext.Current.Request.Headers.GetValues("api_version")?.FirstOrDefault();
  // 根据api_version版本号获取加密对象, 如果为null 则不需要加密
  var encrypt = MessageEncryptionCreator.GetInstance(ver);
  if (encrypt != null)
  {
  // 读取请求body中的数据
  string baseContent = request.Content.ReadAsStringAsync().Result;
  // 获取加密的信息
  // 兼容 body: 加密数据 和 body: code=加密数据
  baseContent = baseContent.Match("(code=)*(?<code>[\\S]+)", 2);
  // URL解码数据
  baseContent = baseContent.DecodeUrl();
  // 用加密对象解密数据
  baseContent = encrypt.Decode(baseContent);
  string baseQuery = string.Empty;
  if (!request.RequestUri.Query.IsNullOrEmpty())
  {
   // 同 body
   // 读取请求 url query数据
   baseQuery = request.RequestUri.Query.Substring(1);
   baseQuery = baseQuery.Match("(code=)*(?<code>[\\S]+)", 2);
   baseQuery = baseQuery.DecodeUrl();
   baseQuery = encrypt.Decode(baseQuery);
  }
  // 将解密后的 URL 重置URL请求
  request.RequestUri = new Uri($"{request.RequestUri.AbsoluteUri.Split('?')[0]}?{baseQuery}");
  // 将解密后的BODY数据 重置
  request.Content = new StringContent(baseContent);
  }
  return request;
 }
 /// <summary>
 /// 处理将要向客户端response时
 /// </summary>
 /// <param name="response"></param>
 /// <param name="cancellationToken"></param>
 /// <returns></returns>
 protected override HttpResponseMessage ProcessResponse(HttpResponseMessage response, CancellationToken cancellationToken)
 {
  //var isMediaType = response.Content.Headers.ContentType.MediaType.Equals(mediaTypeName, StringComparison.OrdinalIgnoreCase);
  var ver = System.Web.HttpContext.Current.Request.Headers.GetValues("api_version")?.FirstOrDefault();
  var encrypt = MessageEncryptionCreator.GetInstance(ver);
  if (encrypt != null)
  {
  if (response.StatusCode == HttpStatusCode.OK)
  {
   var result = response.Content.ReadAsStringAsync().Result;
   // 返回消息 进行加密
   var encodeResult = encrypt.Encode(result);
   response.Content = new StringContent(encodeResult);
  }
  }
  return response;
 }
 }

JoyMessageHandler

public static class WebApiConfig
 {
 public static void Register(HttpConfiguration config)
 {
  // Web API 配置和服务
  // 将 Web API 配置为仅使用不记名令牌身份验证。
  config.SuppressDefaultHostAuthentication();
  config.Filters.Add(new HostAuthenticationFilter(OAuthDefaults.AuthenticationType));
  // Web API 路由
  config.MapHttpAttributeRoutes();
  config.Routes.MapHttpRoute(
  name: "DefaultApi",
  routeTemplate: "api/{controller}/{id}",
  defaults: new { id = RouteParameter.Optional }
  );
  // 添加自定义消息处理
  config.MessageHandlers.Add(new JoyMessageHandler());
 }
 }

WebApiConfig

[TestMethod()]
 public void GetTest()
 {
  var id = 10;
  var resultSuccess = $"\"value{id}\"";
  //不加密
  Trace.WriteLine($"without encryption.");
  var url = $"api/ApiTest?id={id}";
  Trace.WriteLine($"get url : {url}");
  var response = http.GetAsync(url).Result;
  var result = response.Content.ReadAsStringAsync().Result;
  Assert.AreEqual(result, resultSuccess);
  Trace.WriteLine($"result : {result}");
  //使用 方案1加密
  Trace.WriteLine($"encryption case one.");
  url = $"api/ApiTest?code=" + $"id={id}".EncryptBase64().EncodeUrl();
  Trace.WriteLine($"get url : {url}");
  http.DefaultRequestHeaders.Clear();
  http.DefaultRequestHeaders.Add("api_version", "1.0");
  response = http.GetAsync(url).Result;
  result = response.Content.ReadAsStringAsync().Result;
  Trace.WriteLine($"result : {result}");
  result = result.DecryptBase64();
  Trace.WriteLine($"DecryptBase64 : {result}");
  Assert.AreEqual(result, resultSuccess);
  //使用 方案2 加密通讯
  Trace.WriteLine($"encryption case one.");
  url = $"api/ApiTest?code=" + $"id={id}".EncryptDES(MessageEncryptionVersion1_1.KEY).EncodeUrl();
  Trace.WriteLine($"get url : {url}");
  http.DefaultRequestHeaders.Clear();
  http.DefaultRequestHeaders.Add("api_version", "1.1");
  response = http.GetAsync(url).Result;
  result = response.Content.ReadAsStringAsync().Result;
  Trace.WriteLine($"result : {result}");
  result = result.DecryptDES(MessageEncryptionVersion1_1.KEY);
  Trace.WriteLine($"DecryptBase64 : {result}");
  Assert.AreEqual(result, resultSuccess);
 }

ApiTestControllerTests
