天正在等烟雨,而我在等你,啦啦啦,欢迎关注我的简书,今天分享的是原创的canvas仿写贝塞尔曲线方法。具体如下:

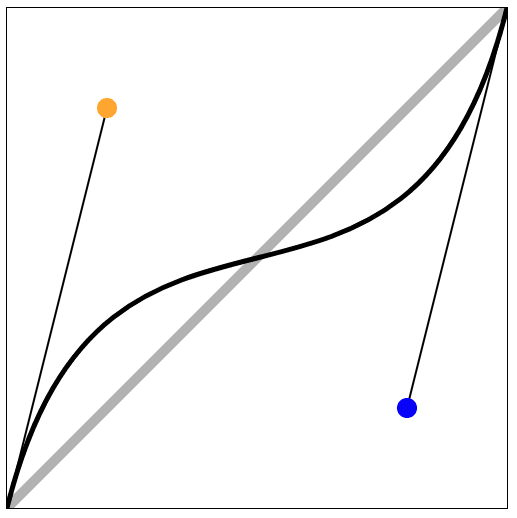

效果图:

canvas仿写贝塞尔曲线示例代码分析

html

<canvas id="mycanvas" width="500" height="500">您的浏览器不支持canvas</canvas>

css

canvas{ border: 1px solid black;}

js

var canvas = document.getElementById("mycanvas");
    var context = canvas.getContext("2d");
    var x1 = 100;
    var y1 = 100;
    var x2 = 400;
    var y2 = 400;
    draw();
    function draw(){
      //画半透明的线
      context.beginPath();
      context.moveTo(500,0);
      context.lineTo(0,500);
      context.strokeStyle = "rgba(0,0,0,0.3)";
      context.lineWidth = 10;
      context.stroke();
      //画连接线
      context.beginPath();
      context.moveTo(0,500);
      context.lineTo(x1,y1);
      context.lineWidth = 2;
      context.strokeStyle = "black";
      context.stroke();
      context.beginPath();
      context.moveTo(500,0);
      context.lineTo(x2,y2);
      context.lineWidth = 2;
      context.strokeStyle = "black";
      context.stroke();
      //画红球
      context.beginPath();
      context.arc(x1,y1,10,0,Math.PI*2);
      context.fillStyle = "orange";
      context.fill();
      //画蓝球
      context.beginPath();
      context.arc(x2,y2,10,0,Math.PI*2);
      context.fillStyle = "blue";
      context.fill();
      //画贝塞尔曲线
      context.beginPath();
      context.moveTo(0,500);
      context.bezierCurveTo(x1,y1,x2,y2,500,0);
      context.lineWidth = 5;
      context.stroke();
    }
    //拖动小球做动画
    //判断是否拖动小球
    //如果在小球上就做动画
    canvas.onmousedown = function(e){
      var ev = e || window.event;
      var x = ev.offsetX;
      var y = ev.offsetY;
      //判断是否在红球上
      var dis = Math.pow((x-x1),2) + Math.pow((y-y1),2);
      if(dis<100){
        console.log("鼠标在红球上");
        canvas.onmousemove = function(e){
          var ev = e || window.event;
          var xx = ev.offsetX;
          var yy = ev.offsetY;
          //清除画布
          context.clearRect(0,0,canvas.width,canvas.height);
          x1 = xx;
          y1 = yy;
          //重绘制
          draw();
        }
      }
      //判断鼠标是否在蓝球上
      var dis = Math.pow((x-x2),2) + Math.pow((y-y2),2);
      if(dis<100){
        canvas.onmousemove = function(e){
          var ev = e || window.event;
          var xx1 = ev.offsetX;
          var yy1 = ev.offsetY;
          //清除画布
          context.clearRect(0,0,canvas.width,canvas.height);
          x2 = xx1;
          y2 = yy1;
          //重绘制
          draw();
        }
      }
    }
    document.onmouseup =function(){
      canvas.onmousemove = " ";
    }
