很多时候需要这样的功能,对表格进行分页、排序和检索。这个有很多实现的方式,有现成的表格控件、用前端的mvvm,用户控件。但很多时候看着很漂亮的东西你想进一步控制的时候却不那么如意。这里自己实现一次,功能不是高大全,但求一个清楚明白,也欢迎园友拍砖。前端是bootstrap3+jPaginate,后台基于membership。没什么难点。

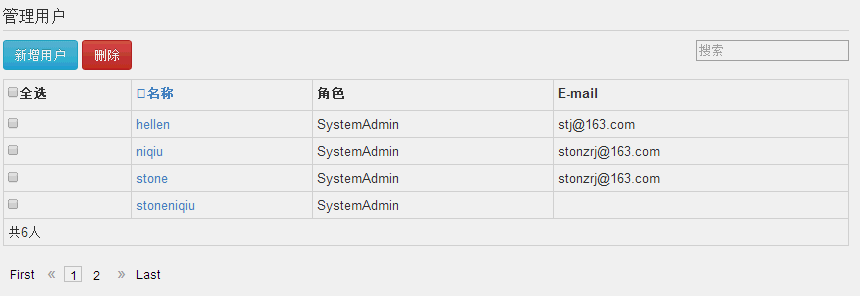

先上效果图。

如何使用Asp.Net MVC分页、检索排序整体实现代码?

分页其实就是处理好 每页项目数、总项目数、总页数、当前页。为了方便复用,就先从仓库开始说起。

一、建立仓库

1.定义Ipager接口,需要分页的模型仓库继承这个接口

namespace Protal.Model.Abstract
{
 /// <summary>
 /// 分页处理
 /// </summary>
 public interface IPager
 {
  /// <summary>
  /// 每页项目数
  /// </summary>
  /// <value>The page item count.</value>
  int PageItemCount { get; set; }
  /// <summary>
  /// 总页数
  /// </summary>
  /// <value>The totoal page.</value>
  int TotoalPage { get; }
  /// <summary>
  /// 显示的页数
  /// </summary>
  /// <value>The display page.</value>
  int DisplayPage { get; set; }
  /// <summary>
  /// 满足条件的总数目
  /// </summary>
  int TotalItem { get; set; }
 }
}

2.定义IUsersRepository,主要处理User 相关的业务逻辑。Find函数是主要的查询方法,order表示顺反排序。

 public interface IUsersRepository : IPager
 {
  /// <summary>
  /// Post list
  /// </summary>
  /// <param name="order">Order expression</param>
  /// <param name="filter">Filter expression</param>
  /// <param name="skip">Records to skip</param>
  /// <param name="take">Records to take</param>
  /// <returns>List of users</returns>
  IEnumerable<User> Find(int order=0,string filter="", int skip = 0, int take = 10);
  /// <summary>
  /// Get single post
  /// </summary>
  /// <param name="name">User id</param>
  /// <returns>User object</returns>
  User FindByName(string name);
  /// <summary>
  /// Add new user
  /// </summary>
  /// <param name="user">Blog user</param>
  /// <returns>Saved user</returns>
  User Add(User user);
  /// <summary>
  /// Update user
  /// </summary>
  /// <param name="user">User to update</param>
  /// <returns>True on success</returns>
  bool Update(User user);
  /// <summary>
  /// Save user profile
  /// </summary>
  /// <param name="user">Blog user</param>
  /// <returns>True on success</returns>
  bool SaveProfile(User user);
  /// <summary>
  /// Delete user
  /// </summary>
  /// <param name="userName">User ID</param>
  /// <returns>True on success</returns>
  bool Remove(string userName);
 }

二、仓库的实现和绑定

主要方法:Membership的中的User和我们自定义的不一样,所以存在一个转换

 public class UsersRepository : IUsersRepository
 {
  /// <summary>
  /// The _user list
  /// </summary>
  private List<User> _userList = new List<User>();
  /// <summary>
  /// The _page item count
  /// </summary>
  private int _pageItemCount;
  /// <summary>
  /// The _display page
  /// </summary>
  private int _displayPage;
  /// <summary>
  /// The _usercount
  /// </summary>
  private int _usercount;
  /// <summary>
  /// The _total item
  /// </summary>
  private int _totalItem;
  /// <summary>
  /// 标记是否有查询条件 没有的话则返回全部数目
  /// </summary>
  private Func<User, bool> _func;

  /// <summary>
  /// Gets or sets the users.
  /// </summary>
  /// <value>The users.</value>
  public List<User> Users
  {
   get
   {
    int count;
    var usercollection = Membership.GetAllUsers(0, 999, out count);
    if (count == _usercount) return _userList;
    _usercount = count;
    var members = usercollection.Cast<MembershipUser>().ToList();
    foreach (var membershipUser in members)//这里存在一个转换
    {
     _userList.Add(new User
     {
      Email = membershipUser.Email,
      UserName = membershipUser.UserName,
      //roles password
     });
    }
    return _userList;
   }
   set { _userList = value; }
  }
//查询
public IEnumerable<User> Find(int order = 0, string filter = "", int skip = 0, int take = 10)
  {
   if (take == 0) take = Users.Count;
   //过滤
   _func = string.IsNullOrEmpty(filter) ? (Func<User, bool>) (n => n.UserName != "") : (n => n.UserName.Contains(filter));
   var users = Users.Where(_func).ToList();
   //更新总数目
   _totalItem = users.Count;
   users = order == 0 ? users.OrderBy(n => n.UserName).ToList() : users.OrderByDescending(n => n.UserName).ToList();
   return users.Skip(skip).Take(take);
  }
 /// <summary>
  /// 每页项目数
  /// </summary>
  /// <value>The page item count.</value>
  public int PageItemCount
  {
   get
   {
    if (_pageItemCount == 0)
    {
     _pageItemCount = ProtalConfig.UserPageItemCount;
    }
    return _pageItemCount;
   }
   set { _pageItemCount = value; }
  }

  /// <summary>
  /// 总页数
  /// </summary>
  /// <value>The totoal page.</value>
  public int TotoalPage
  {
   get
   {
    var page = (int) Math.Ceiling((double) TotalItem/PageItemCount);
    return page==0?1:page;
   }
  }
  /// <summary>
  /// 显示的页数
  /// </summary>
  /// <value>The display page.</value>
  public int DisplayPage
  {
   get
   {
    if (_displayPage == 0)
    {
     _displayPage = ProtalConfig.UserDisplayPage;
    }
    return _displayPage;
   }
   set { _displayPage = value; }
  }


  /// <summary>
  /// 满足条件的总数目 保持更新
  /// </summary>
  /// <value>The total item.</value>
  public int TotalItem
  {
   get
   {
    if (_func == null)
     _totalItem = Users.Count;
    return _totalItem;
   }
   set { _totalItem = value; }
  }
}

ProtalConfig.UserDisplayPage 这里是通过配置实现一个默认页数,让用户可以再webconfig中更改行列的数目。

public static int UserPageItemCount
    {
     get
     {
      if (_userPageItemCount == 0)
      {
       _userPageItemCount = WebConfigurationManager.AppSettings["UserPageItemCount"] != null ?
        Convert.ToInt16(WebConfigurationManager.AppSettings["UserPageItemCount"]) : 5;
      }
      return _userPageItemCount;
     }
     set
     {
      _userPageItemCount = value;
     }
    }

再进行绑定:

 _kernel.Bind<IUsersRepository>().To<UsersRepository>();

三、控制器部分

我们需要两个页面,一个主页面Index,一个负责局部刷新的部分视图 UserTable

下面是主要的方法,主要逻辑都在在仓库中处理了。

 [Authorize]
 public class UserManagerController : Controller
 {
  /// <summary>
  /// The _repository
  /// </summary>
  private readonly IUsersRepository _repository;

  /// <summary>
  /// Initializes a new instance of the <see cref="UserManagerController"/> class.
  /// </summary>
  /// <param name="iRepository">The i repository.</param>
  public UserManagerController(IUsersRepository iRepository)
  {
   _repository = iRepository;
  }

  /// <summary>
  /// Indexes the specified page index.
  /// </summary>
  /// <param name="pageIndex">Index of the page.</param>
  /// <returns>ActionResult.</returns>
  public ActionResult Index(int pageIndex=1)
  {
   ViewBag.DisplayPage = _repository.DisplayPage;
   pageIndex = HandlePageindex(pageIndex);

   //支持地址栏直接分页
   ViewBag.CurrentPage = pageIndex;
   return View();
  }


  /// <summary>
  /// Users table. 分页模块
  /// </summary>
  /// <param name="pageIndex">Index of the page.</param>
  /// <param name="order">The order.</param>
  /// <param name="filter">The filter str.</param>
  /// <returns>ActionResult.</returns>
  public ActionResult UserTable(int pageIndex = 1, int order = 0, string filter = "")
  {
   pageIndex = HandlePageindex(pageIndex);
   var skip = (pageIndex - 1) * _repository.PageItemCount;
   var users = _repository.Find(order,filter, skip, _repository.PageItemCount);

   //总用户数
   ViewBag.TotalUser = _repository.TotalItem;
   //总页数
   ViewBag.TotalPageCount = _repository.TotoalPage; ;

   return PartialView(users);
  }

  /// <summary>
  /// 处理页数 防止过大或过小
  /// </summary>
  /// <param name="index"></param>
  /// <returns></returns>
  private int HandlePageindex(int index)
  {
   var totoalpage = _repository.TotoalPage;
   if (index == 0) return 1;
   return index > totoalpage ? totoalpage : index;
  }
}

四、视图部分Html jquery

1.Index.cshtml

<script src="~/Scripts/form.js"></script>
<div class="container">
 <h4 class="bottomline">管理用户</h4>
 <p>
  <button data-target="#adduser" id="adduserbt" data-toggle="modal" class="btn btn-info btn-hover">新增用户</button>
  <button class="btn btn-danger" id="deluser">删除</button>
  <span class="errorinfo"></span>
  <input type="search" class="pull-right" id="usersearch" placeholder="搜索"/>
 </p>
 <div id="userpart">
   @Html.Action("UserTable",new{pageIndex=ViewBag.CurrentPage})
 </div>
 <div id="userpager"></div>
 <input type="hidden" id="dispalypage" value="@ViewBag.DisplayPage"/>
 <input type="hidden" id="page" value="@ViewBag.CurrentPage"/>
 <input type="hidden" id="currentpage" value="@ViewBag.CurrentPage"/>

</div>
<div class="modal fade adduserbox"id="adduser" tabindex="1" role="dialog" aria-hidden="true">
 <div class="modal-content">
  <div class="modal-header">
    <button type="button" class="close" data-dismiss="modal" aria-hidden="true" >×</button>
    <h4 class="modal-title">Add new User</h4>
  </div>
  <div class="modal-body">
   @{
    Html.RenderAction("Create","UserManager");
   }
  </div>
 </div>
</div>

@section Scripts {
 @Scripts.Render("~/bundles/jqueryval")
}

2.UserTable.cshtml,角色部分还未处理,这个表格更新之后,也会更新满足条件的用户数和新的总页数,触发Jpaginate重新分页一次。

@model IEnumerable<Protal.Model.Data.User.User>
 <table id="usertable" class="table table-striped table-condensed table-hover table-bordered">
  <tr>
   <th><input type="checkbox" id="allcheck" /><label for="allcheck">全选</label></th>
   <th><a href="#" id="usersort" data-order="0" class="glyphicon-sort">名称</a></th>
   <th>角色</th>
   <th>E-mail</th>
  </tr>
  <tbody>
   @foreach (var item in Model) {
    <tr>
     <td> <input type="checkbox" data-id="@item.UserName" /></td>
     <td> <a>@item.UserName</a> </td>
     <td> @Html.Raw(item.Role) </td>
     <td> @item.Email</td>
    </tr>
   }</tbody>
  <tfoot>
   <tr>
    <td colspan="4">
     <span>@Html.Raw("共"+ViewBag.TotalUser+"人")</span> @*<span>@ViewBag.TotalPageCount</span>*@
    </td>
   </tr>
  </tfoot>
 </table>
 <input type="hidden" id="totoalpage" value="@ViewBag.TotalPageCount"/>

3.脚本

其中用到的像checkall,infoShow 都是自己扩展的一些简单的方法,用于全选和提示。

$(function () {

  var options = {
   dataType: 'json',
   success: processJson
  };
  pageagin($("#totoalpage").val());
  //分页
  function pageagin(totalcount) {
   $("#userpager").paginate({
    count: totalcount,
    start: $("#page").val(),
    dispaly: $("#dispalypage").val(),
    boder: false,
    border_color: '#fff',//自己调整样式。
    text_color: 'black',
    background_color: 'none',
    border_hover_color: '#ccc',
    text_hover_color: '#000',
    background_hover_color: '#fff',
    images: false,
    mouse: 'press',
    onChange: function (page) { //翻页
     paging(page);
     $("#currentpage").val(page);
    }
   });
  }
  //分页更新
  function paging(page) {
   $.post("/Users/UserTable", { pageIndex: page, order: $("#userpart").attr("data-order"), filter: $.trim($("#usersearch").val()) }, function (data) {
    $("#userpart").html(data);
   });
  }

  //排序
  $("#usersort").live("click",function () {
   $("#userpart").triggerdataOrder();
   paging( $("#currentpage").val());
  });

  //搜索
  $("#usersearch").keyup(function() {
   paging($("#currentpage").val());
   pageagin($("#totoalpage").val());
  });

  //处理form
  $("#userForm").submit(function () {
   $(this).ajaxSubmit(options);
   return false;
  });
  function processJson(data) {
   if (data == 1) {
    location.reload();
   } else {
    alert("添加失败");
   }
  }

  //高亮
  $("#unav li:eq(0)").addClass("active");
  $("#adnav li:eq(2)").addClass("active");
  //全选/全不选
  $("#allcheck").checkall($("#usertable tbody input[type='checkbox']"));

  //删除用户
  $("#deluser").click(function () {
   var checks = $("#usertable tbody input[type='checkbox']:checked");
   var lens = checks.length;
   if (lens == 0) {
    $.infoShow("未选择删除对象",0);
    return false;
   }
   if (confirm("确定要删除所选中用户?")) {
    for (var i = 0; i < lens; i++) {
     var $chek = checks.eq(i);
     var id = $chek.attr("data-id");
     var tr = $chek.parent().parent();
     $.post("Users/DeleteUser", { id: id }, function (data) {
      if (data == 1) {
       tr.fadeOut();
       $.infoShow("删除成功", 1);
      } else {
       $.infoShow("删除失败", 0);
      }
     });
    }
   }
    return true;
  });

  // 增加用户
  $("#adduserbt").click(function() {
   $(".modal-header").show();
  });
 })

到这里就是全部的代码,供大家和自己参考。

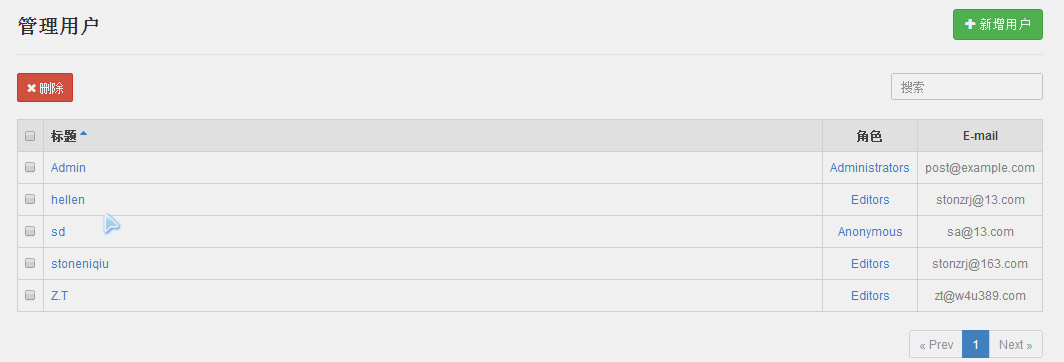

再给大家看两个效果图,一个是kendoui的grid,一个是Angular做的分页。后面有机会给大家介绍。

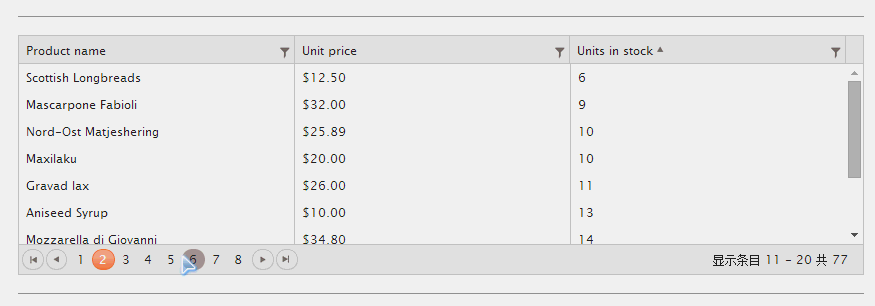

Kendo- Grid

如何使用Asp.Net MVC分页、检索排序整体实现代码?

Kendo和MVC框架融合度比较高,它的核心代码如下:

@model IEnumerable<Kendo.Mvc.Examples.Models.ProductViewModel>

@(Html.Kendo().Grid(Model)
 .Name("Grid")
 .Columns(columns =>
 {
  columns.Bound(p => p.ProductID).Groupable(false);
  columns.Bound(p => p.ProductName);
  columns.Bound(p => p.UnitPrice);
  columns.Bound(p => p.UnitsInStock);
 })
 .Pageable()
 .Sortable()
 .Scrollable()
 .Filterable()
 .DataSource(dataSource => dataSource
  .Ajax()
  .ServerOperation(false)
  )
)

AngularJs 核心还是调用封装好的API函数,相当于上面的仓库中的方法,然后通过模型绑定。

如何使用Asp.Net MVC分页、检索排序整体实现代码?

总结一下:自己实现代码量比较多,功能不全,有重复造轮子的感觉,但可以较好的控制,基本够用;kendo的方式感觉高大全,用熟了开发速度快。就是多一些引用,且需要担心kendoui和其他的ui框架会有冲突。前端MVVM的方式我了解还不够深,感觉前端脚本的代码量也蛮多,效果不错。但生成的html代码很少。上面这个表格。chrome F12或者右键查看源码都是下面这样子的:

主要的就一个div

 <div data-ng-app="blogAdmin" data-ng-view="" id="ng-view"></div>

自我保护倒是蛮好,也就是SEO可能有问题。应该还有更好的方式,猿友们指点指点。

<html>
<head>
 <title>Name of the blog (Admin)</title>
 <link rel="shortcut icon" href="/pics/blogengine.ico" type="image/x-icon" />
 <meta charset="utf-8" />
 <meta http-equiv="X-UA-Compatible" content="IE=edge, chrome=1" />
 <meta name="apple-mobile-web-app-capable" content="yes" />
 <meta name="apple-mobile-web-app-status-bar-style" content="black" />
 <meta name="format-detection" content="telephone=no" />
 <meta name="viewport" content="width=device-width, initial-scale=1.0, maximum-scale=1.0, user-scalable=no">
 <link href="/Content/bootstrap/bootstrap.css" rel="stylesheet"/>
<link href="/Content/bootstrap/bootstrap-theme.css" rel="stylesheet"/>
<link href="/Content/toastr.css" rel="stylesheet"/>
<link href="/Content/font-awesome.css" rel="stylesheet"/>
<link href="/Content/editor.css" rel="stylesheet"/>
<link href="/Content/app.css" rel="stylesheet"/>

 <script type="text/javascript">
  if (navigator.userAgent.match(/IEMobile\/10\.0/)) {
   var msViewportStyle = document.createElement("style");
   var mq = "@-ms-viewport{width:auto!important}";
   msViewportStyle.appendChild(document.createTextNode(mq));
   document.getElementsByTagName("head")[0].appendChild(msViewportStyle);
  }
 </script>
</head>
<body>
 <script type="text/javascript">
  var SiteVars = {
   ApplicationRelativeWebRoot: '/',
   RelativeWebRoot: '/',
   BlogInstanceId: '96d5b379-7e1d-4dac-a6ba-1e50db561b04',
   UserName: 'admin',
   UserRights: ['ViewDetailedErrorMessages', 'AccessAdminPages', 'AccessAdminSettingsPages', 'ManageWidgets', 'ViewPublicComments', 'ViewUnmoderatedComments', 'CreateComments', 'ModerateComments', 'ViewPublicPosts', 'ViewUnpublishedPosts', 'CreateNewPosts', 'EditOwnPosts', 'EditOtherUsersPosts', 'DeleteOwnPosts', 'DeleteOtherUsersPosts', 'PublishOwnPosts', 'PublishOtherUsersPosts', 'ViewPublicPages', 'ViewUnpublishedPages', 'CreateNewPages', 'EditOwnPages', 'ViewRatingsOnPosts', 'SubmitRatingsOnPosts', 'ViewRoles', 'CreateNewRoles', 'EditRoles', 'DeleteRoles', 'EditOwnRoles', 'EditOtherUsersRoles', 'CreateNewUsers', 'DeleteUserSelf', 'DeleteUsersOtherThanSelf', 'EditOwnUser', 'EditOtherUsers'],
   AbsoluteWebRoot: 'http://localhost:53265/',
   Version: 'BlogEngine.NET ' + '2.9.1.0',
   IsPrimary: 'True',
   IsAdmin: 'True',
   AppRoot: function (url) { window.location = '/' + url; return false; },
   BlogRoot: function (url) { window.location = '/' + url; }
  };
 </script>
 <script type="text/javascript" src="admin.res.axd"></script>
 <div id="container" class="app-wrapper ltr">
  <div data-ng-app="blogAdmin" data-ng-view="" id="ng-view"></div>
 </div>

 <script src="/scripts/jquery-2.0.3.js"></script>
<script src="/scripts/jquery.validate.js"></script>
<script src="/scripts/jquery.form.js"></script>
<script src="/scripts/toastr.js"></script>
<script src="/Scripts/angular.min.js"></script>
<script src="/Scripts/angular-route.min.js"></script>
<script src="/Scripts/angular-animate.min.js"></script>
<script src="/Scripts/angular-sanitize.min.js"></script>
<script src="/admin/be-grid.js"></script>
<script src="/admin/app.js"></script>
<script src="/admin/controllers/dashboard.js"></script>
<script src="/admin/controllers/blogs.js"></script>
<script src="/admin/controllers/posts.js"></script>
<script src="/admin/controllers/pages.js"></script>
<script src="/admin/controllers/tags.js"></script>
<script src="/admin/controllers/categories.js"></script>
<script src="/admin/controllers/comments.js"></script>
<script src="/admin/controllers/users.js"></script>
<script src="/admin/controllers/roles.js"></script>
<script src="/admin/controllers/profile.js"></script>
<script src="/admin/controllers/settings.js"></script>
<script src="/admin/controllers/packages.js"></script>
<script src="/admin/controllers/common.js"></script>
<script src="/admin/services.js"></script>
<script src="/scripts/bootstrap.js"></script>
<script src="/scripts/moment.js"></script>

</body>
</html>

PS:这个东西没什么难度,逻辑都在仓库中,要源码的同学我后续分离出来了再贴出来。当然这个又很多方式,我也不是要秀什么框架,但我目前项目的需求是要这么分开的。一个控制器是可用解决所有问题,但我其他模型也要分页又要便于测试难道我都写在控制器中吗?

Demo 下载请戳这里

以上就是本文的全部内容,希望对大家的学习有所帮助,也希望大家多多支持路饭。
