echarts用来做数据报表的一个展示效果了,这里我们来给各位介绍一个java/jsp利用echarts实现报表统计的例子,例子非常的简单只是把数据调出来给echarts即可了。

开始上代码。

首先是tag,这个东西,大学之后,几乎不怎么用了,没想到现在又用到了。

<%@ tag pageEncoding="UTF-8" isELIgnored="false" body-content="empty"%>
<%--自定义div容器id--%>
<%@attribute name="container" required="true" %>
<%--自定义标题--%>
<%@attribute name="title" required="true" %>
<%--自定义子标题--%>
<%@attribute name="subtitle" required="false" %>
<%--自定义数据请求url--%>
<%@attribute name="urls" required="true" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<script src="/echarts-2.1.8/build/dist/jquery.min.js"></script>
<script src="/echarts-2.1.8/build/dist/echarts-all.js"></script>
<script type="text/javascript">
 // 基于准备好的dom,初始化echarts图表
 var myChart = echarts.init(document.getElementById('${container}'));
 var option={
  title : {
   text: '${title}',
   subtext: '${subtitle}'
  },
  tooltip : {
   trigger: 'axis'
  },
  legend: {
   data:[]
  },
  toolbox: {
   show : true,
   feature : {
    mark : {show: true},
    dataView : {show: true, readOnly: false},
    magicType : {show: true, type: ['line', 'bar']},
    restore : {show: true},
    saveAsImage : {show: true}
   }
  },
  calculable : true,
  xAxis : [
   {
    type : 'category',
    boundaryGap : false,
    data : []
   }
  ],
  yAxis : [
   {
    type : 'value',
    axisLabel : {
     formatter: '{value} '
    }
   }
  ],
  series : []
 };
 //采用ajax异步请求数据
 $.ajax({
  type:'post',
  url:'${urls}',
   dataType:'json',
   success:function(result){
    if(result){
     //将返回的category和series对象赋值给options对象内的category和series
     option.xAxis[0].data = result.axis;
     option.legend.data = result.legend;
     var series_arr=result.series;
     for(var i=0;i<series_arr.length;i++){
      option.series[i] = result.series[i];
     }
     myChart.hideLoading();
     myChart.setOption(option);
    }
    },
   error:function(errMsg){
    console.error("加载数据失败")
   }
 });
 // 为echarts对象加载数据
 // myChart.setOption(option);
</script>

写tag需要引入jstl包,谷歌下就有了。1.2之前需要两个包,一个jstl,一个standard。1.2之后貌似合并为一个了。<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>这句的写法也有点不同。为防万一,我是引入的两个包。

使用ajax请求,需要引入jquery的包,引入echarts的时候,同时引入这个。

在上面代码中,最主要的还是标红的那段,series是一个数组,后台加入多组数据的时候,这里需要遍历取出。

jsp页面引入该标签:

<%--
 Created by IntelliJ IDEA.
 User: Administrator
 Date: 2014/11/24
 Time: 12:02
 To change this template use File | Settings | File Templates.
--%>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@taglib prefix="c" tagdir="/WEB-INF/tags" %>
<html>
<head>
 <title></title>
</head>
<body>
 <div id="main" style="height: 400px"></div>
 <c:linecharts container="main" title="测试标签" subtitle="测试子标签" urls="/tags"></c:linecharts>
</body>
</html>

前端的部分到此算是完成,然后就是后台部分了。

后台用两个java对象,封装一下要传递的数据

package bean.newseries;
import java.util.ArrayList;
import java.util.List;
/**
 * Created by on 2014/11/25.
 */
public class Echarts {
 public List<String> legend = new ArrayList<String>();//数据分组
 public List<String> axis = new ArrayList<String>();//横坐标
 public List<Series> series = new ArrayList<Series>();//纵坐标
 public Echarts(List<String> legendList, List<String> categoryList, List<Series> seriesList) {
  super();
  this.legend = legendList;
  this.axis = categoryList;
  this.series = seriesList;
 }
}

这里放series的具体数据:

package bean.newseries;
import java.util.List;
/**
 * Created by on 2014/11/25.
 */
public class Series {
 public String name;
 public String type;
 public List<Integer> data;
 public Series(String name, String type, List<Integer> data) {
  this.name = name;
  this.type = type;
  this.data = data;
 }
}

后台业务中,将自己的数据,放到对象中,然后转换成json格式:

package tagservlet;
import bean.newseries.Echarts;
import bean.newseries.Series;
import com.fasterxml.jackson.databind.ObjectMapper;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.io.PrintWriter;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;
/**
 * Created by on 2014/11/24.
 */
public class NewTagServlet extends HttpServlet {
 protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
  List<String> legend=new ArrayList<String>(Arrays.asList(new String[]{"最高值","最低值"}));
  List<String> axis=new ArrayList<String>(Arrays.asList(new String[]{"周一","周二","周三","周四","周五","周六","周日"}));
  List<Series> series=new ArrayList<Series>();
  series.add(new Series("最高值","line",new ArrayList<Integer>(Arrays.asList(21,23,28,26,21,33,44))));
  series.add(new Series("最低值","line",new ArrayList<Integer>(Arrays.asList(-2,-12,10,0,20,11,-6))));
  Echarts echarts=new Echarts(legend,axis,series);
  ObjectMapper objectMapper=new ObjectMapper();
  System.out.println(objectMapper.writeValueAsString(echarts));
  response.setContentType("text/html;charset=utf-8");
  PrintWriter out=response.getWriter();
  out.println(objectMapper.writeValueAsString(echarts));
  out.flush();
  out.close();
 }
 protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
  this.doPost(request,response);
 }
}

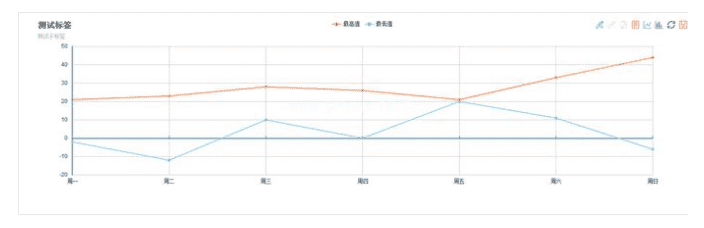

效果图如下:
