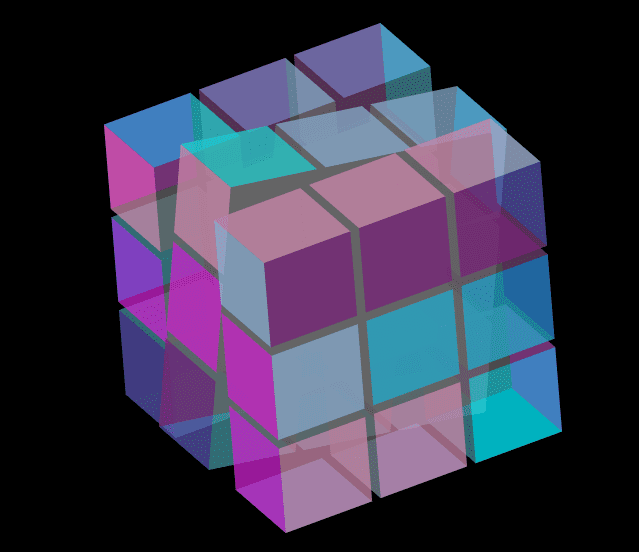

怎么样使用原生javascript+css3编写3D魔方动画旋扭特效?

怎么样使用原生javascript+css3编写3D魔方动画旋扭特效?

一直从事于后端编程工作,工作中也经常接触和使用一些前端技术,但大多数还是用于操作和控制数据与客户端交互工作。随着互联网技术的发展以及硬件性能的不断提升,人们对于交互式体验已变得越来越重视,进而前端技术已经越来越突显出它的重要性,特别是一些炫酷的特效,精美的UI设计,都使人眼前一亮,顿时觉得网站平台都高大上不少,很博人们眼球,给人们以很好的视觉冲击,特别是现在的css3,HTML5技术的更新,使得以更小的代价就可以轻松实现这些效果,故此,顿时膜拜起前端技术,悠然起了兴趣,跃跃欲试,随机利用css3的新增3D特效技术及动画特效功能加原生态javascript写了一个随机打乱旋扭的魔方,在指定的步数后,魔方按记录的动作,逆行旋扭重新归位。随即发布出来与大家分享,也希望前端的大牛能指点一二,不甚感激!

怎么样使用原生javascript+css3编写3D魔方动画旋扭特效?

代码如下:

<!DOCTYPE html>
<html>
<head>
 <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
 <title></title>
 <meta charset="utf-8" />
 <script language="javascript" type="text/javascript">
 var cache = {};
 (function (exports) {

  function Cube(opts) {
  opts = opts || {};
  this.parent = opts.parent; //插入到哪里
  this.browserPrefix = opts.browserPrefix;
  this.width = opts.width;
  this.height = opts.height;
  this.cubZ = opts.cubZ;
  this.face = opts.face;
  this.row = opts.row;
  this.column = opts.column;
  this.offsetX = this.column * (this.width + opts.marginX); //
  this.offsetY = this.row * (this.height + opts.marginY);//
  this.offsetZ = this.face * (this.cubZ + opts.marginZ);//
  this.positiveZ = this.cubZ / 2;
  this.negativeZ = -this.cubZ / 2;
  this.cubFaceInfo = opts.cubFaceInfo;
  this.dimension = opts.dimension;
  this.centerX = (this.dimension * this.width + (this.dimension - 1) * opts.marginX) / 2;
  this.centerY = (this.dimension * this.height + (this.dimension - 1) * opts.marginY) / 2;
  this.centerZ = (this.dimension * this.cubZ + (this.dimension - 1) * opts.marginZ) / 2;
  this.translateX = this.offsetX - this.centerX; //把中心点设为原点
  this.translateY = this.offsetY - this.centerY; //
  this.translateZ = this.cubZ / 2 + this.offsetZ - this.centerZ; //offsetZ按上面计算应该跟x,y在一个平面上即后面,但实际上由于要形成立方体,在Z轴上已经后退了cubZ/2个距离,故为和上面保持一致在一个面上,这里需要再加回cubZ/2个距离,使默认的xyz原点都在一个平面上即立方体后面左上角三维坐标系,以这个点作为参考点平移和设置旋转原点
  this.cubeFace = [];
  this.rotateTransfrom = "";
  this.init();

  }
  Cube.prototype = {
  init: function () {
   this.createCubeBox();
   this.createFront();
   this.createBack();
   this.createTop();
   this.createBottom();
   this.createLeft();
   this.createRight();

  },
  createCubeBox: function () {
   this.Box = document.createElement('div');
   this.Box.style.width = this.width + "px";
   this.Box.style.height = this.height + "px";
   this.Box.style.left = "50%";
   this.Box.style.top = "50%";
   this.Box.style.position = "absolute";
   this.Box.style[this.browserPrefix + "TransformStyle"] = "preserve-3d";
   this.Box.style[this.browserPrefix + "Perspective"] = "0";
   //   this.Scene.style[this.browserPrefix + "backfaceVisibility"] = "hidden";
   this.intalTransform = "translateZ(" + this.translateZ + "px) translateX(" + this.translateX + "px) translateY(" + this.translateY + "px)";
   this.Box.style[this.browserPrefix + "Transform"] = this.intalTransform;
   this.Box.style[this.browserPrefix + "TransformOrigin"] = "" + (-this.translateX) + "px " + (-this.translateY) + "px " + (-this.translateZ) + "px";
   this.parent.appendChild(this.Box);
   this.x = window.getComputedStyle(this.Box).getPropertyValue('left');
   this.y = window.getComputedStyle(this.Box).getPropertyValue('top');
   this.matrix3d = window.getComputedStyle(this.Box).getPropertyValue('transform');
  },
  createFace: function () {
   var face = document.createElement('div');
   face.style.margin = 0;
   face.style.position = "absolute";
   face.style.width = this.width + "px";
   face.style.height = this.height + "px";
   return face;
  },
  createFront: function () {
   var face = this.createFace();
   face.style[this.browserPrefix + "Transform"] = "translateZ(" + this.positiveZ + "px) "
   this.cubeFace.push(face);
   this.front = face;
   this.Box.appendChild(face);
  },
  createBack: function () {
   var face = this.createFace();
   face.style[this.browserPrefix + "Transform"] = "translateZ(" + this.negativeZ + "px) ";
   this.cubeFace.push(face);
   this.back = face;
   this.Box.appendChild(face);
  },
  createTop: function () {
   var face = this.createFace();
   face.style[this.browserPrefix + "Transform"] = "rotateX(90deg) translateZ(" + this.positiveZ + "px) ";
   this.cubeFace.push(face);
   this.top = face;
   this.Box.appendChild(face);
  },
  createBottom: function () {
   var face = this.createFace();
   face.style[this.browserPrefix + "Transform"] = "rotateX(90deg) translateZ(" + this.negativeZ + "px) ";
   this.cubeFace.push(face);
   this.bottom = face;
   this.Box.appendChild(face);
  },
  createLeft: function () {
   var face = this.createFace();
   face.style[this.browserPrefix + "Transform"] = "rotateY(90deg) translateZ(" + this.negativeZ + "px) ";
   this.cubeFace.push(face);
   this.left = face;
   this.Box.appendChild(face);
  },
  createRight: function () {
   var face = this.createFace();
   face.style[this.browserPrefix + "Transform"] = "rotateY(90deg) translateZ(" + (this.positiveZ) + "px) ";
   this.cubeFace.push(face);
   this.right = face;
   this.Box.appendChild(face);
  }

  }
  exports.magicCube = function (opts) {
  opts = opts || {};
  this.parent = opts.parent || document.getElementsByTagName('body')[0];
  this.dimension = opts.dimension || 3; //魔方级数
  this.cubWidth = opts.cubWidth || 50; //单个立方体宽度
  this.cubHidth = opts.cubHidth || 50; //单个立方体告诉
  this.marginLeft = opts.marginLeft || 0;
  this.marginTop = opts.marginLeft || 0;
  this.marginZ = opts.marginZ || 0;
  this.cubZ = opts.cubZ || 50; //单个立方体Z轴距离
  this.sceneWidth = opts.sceneWidth; //3d场景宽度
  this.sceneHeight = opts.sceneHeight; //3d场景高度
  this.Perspective = opts.Perspective || 0; //投影值
  this.cubFaceInfo = opts.cubFaceInfo || { front: { backGround: "rgba(0,255,255,.5)" }, back: { backGround: "rgba(153,204,255,.5)" }, left: { backGround: "rgba(128,0,128,.5)" }, right: { backGround: "rgba(255,0,255,.5)" }, top: { backGround: "rgba(255,153,204,.5)" }, bottom: { backGround: "rgba(0,204,255,.5)" }, inner: { backGround: "rgba(100,100,100,.5)" } }; //立方体面信息
  this.angle = opts.angle || 90;
  this.rollbackPoint = opts.rollbackPoint || 10;
  this.faceCount = this.dimension * this.dimension; //每面立方体个数
  this.count = this.dimension * this.dimension * this.dimension; //立方体总个数
  this.cubes = [];
  this.browserPrefix = "";
  this.isRunning = 0;
  this.timer = null;
  this.rotateFace;
  this.moveDirect = true;//正向随机动作还是回归,默认为正向
  this.cubeMoveQueue = [];
  this.rollMoveStack = [];//动作回归的堆栈
  this.init();
  };
  magicCube.prototype = {
  init: function () {
   this.start();
  },
  create3dScene: function () {
   this.Scene = document.createElement('div');
   //this.Scene.className = "cube";
   var width = this.sceneWidth || this.clientWidth,
   height = this.sceneHeight || this.clientHeight;
   this.Scene.style.width = width + "px";
   this.Scene.style.height = height + "px";
   this.Scene.style.position = "relative";
   this.Scene.style[this.browserPrefix + "TransformStyle"] = "preserve-3d";
   this.Scene.style[this.browserPrefix + "Perspective"] = this.Perspective + "px";
   //   this.Scene.style[this.browserPrefix + "backfaceVisibility"] = "hidden";
   this.Scene.style[this.browserPrefix + "Transform"] = "rotateX(-30deg) rotateY(30deg) ";
   this.parent.appendChild(this.Scene);

  },
  create: function (face, row, column) {
   return new Cube({
   parent: this.Scene,
   dimension: this.dimension,
   width: this.cubWidth,
   height: this.cubHidth,
   cubZ: this.cubZ,
   face: face,
   row: row,
   column: column,
   browserPrefix: this.browserPrefix,
   cubFaceInfo: this.cubFaceInfo,
   marginX: this.marginLeft,
   marginY: this.marginTop,
   marginZ: this.marginZ,
   dimension: this.dimension
   });
  },
  createMagicCube: function (index) {
   var face = 0, row = 0, column = 0;
   for (var i = 0; i < this.count; i++) {
   this.cubes.push(this.create(face, row, column));
   this.cubes[this.cubes.length - 1].index = this.cubes.length - 1;
   column++;
   if ((i + 1) % this.dimension === 0) {
    row++;
    column = 0;
   }
   if ((i + 1) % this.faceCount === 0) {
    face++;
    row = 0;
   }
   }
  },
  drawBackGroundColor: function () {
   for (var face in this.cubFaceInfo) {
   if (face == "inner") {
    this.setInnerBKColor(this.cubFaceInfo[face].backGround);
   }
   else {
    var cube = this.getCubesByFace(face);
    for (var i = 0, len = cube.length; i < len; i++) {
    cube[i][face].style.background = this.cubFaceInfo[face].backGround;
    }
   }
   }

  },
  setInnerBKColor: function (color) {
   for (var i = 0; i < this.count; i++) {
   for (var j = 0; j < 6; j++) {
    if (this.cubes[i].cubeFace[j].style.background == "") {
    this.cubes[i].cubeFace[j].style.background = color;
    }
   }
   }
  },
  getZFace: function (zIndex) {
   var zFace = [];
   if (zIndex < 1 || zIndex > this.dimension)
   return null;
   for (var i = (zIndex - 1) * this.faceCount; i < zIndex * this.faceCount; i++) {
   zFace.push(this.cubes[i]);
   }
   return zFace;
  },
  getXFace: function (xIndex) {
   var xFace = [];
   if (xIndex < 1 || xIndex > this.dimension)
   return null;
   for (var i = 0; i < this.count; i++) {
   if (i % this.dimension == 0)
    xFace.push(this.cubes[i + xIndex - 1]);
   }
   return xFace;
  },
  getYFace: function (yIndex) {
   var yFace = [];
   if (yIndex < 1 || yIndex > this.dimension)
   return null;
   for (var i = 0; i < this.count; i++) {
   if (i % this.faceCount == (yIndex - 1) * this.dimension) {
    for (var j = 0; j < this.dimension; j++)
    yFace.push(this.cubes[i + j]);
   }
   }
   return yFace;
  },
  getSideCubes: function (cubes, circleIndex) {
   var sides = [], top = [], left = [], bottom = [], right = [];
   if (circleIndex < 0 || circleIndex > this.dimension / 2 - 1)
   return null;
   for (var i = 0, count = this.dimension - circleIndex * 2; i < count; i++) {
   top.push(cubes[circleIndex * this.dimension + circleIndex + i]);
   left.push(cubes[circleIndex * this.dimension + circleIndex + i * this.dimension]);
   bottom.push(cubes[(this.dimension - 1 - circleIndex) * this.dimension + circleIndex + i]);
   right.push(cubes[circleIndex * this.dimension + circleIndex + i * this.dimension + (this.dimension - (circleIndex * 2) - 1)]);
   }
   sides.push(this.orderByDesc(top));
   sides.push(left);
   sides.push(bottom);
   sides.push(this.orderByDesc(right));
   return sides;
  },

  getCubesByFace: function (face) {
   switch (face) {
   case "front": return this.getZFace(this.dimension);
   case "back": return this.getZFace(1);
   case "left": return this.getXFace(1);
   case "right": return this.getXFace(this.dimension);
   case "top": return this.getYFace(1);
   case "bottom": return this.getYFace(this.dimension);
   }
  },
  moveMagicCube: function () {
   if (this.cubes.length < 1) return;
   //var cubes = this.getYFace(2);
   //for (var i = 0, len = cubes.length; i < len; i++) {
   // cubes[i].Box.className = "rotate";
   //}
   //随机产生3D转动方向
   this.isRunning = 0;
   var direct = this.random(1, 3), rotateDirect = "", getFaceFun;
   // direct=3;
   switch (direct) {
   case 1: rotateDirect = "rotateX"; getFaceFun = this.getXFace; break;
   case 2: rotateDirect = "rotateY"; getFaceFun = this.getYFace; break;
   case 3: rotateDirect = "rotateZ"; getFaceFun = this.getZFace; break;
   }
   this.rotateFace = rotateDirect;
   this.cubeRotateStatus = [];
   for (var i = 1; i <= this.dimension; i++) {
   var status = this.random(0, 2);
   this.cubeRotateStatus.push(status);
   switch (status) {
    case 0: break;//不转动
    case 1: this.rotateBox(this.angle, rotateDirect, i, getFaceFun.call(this, i)); break;//正向转动90
    case 2: this.rotateBox(-this.angle, rotateDirect, i, getFaceFun.call(this, i)); break;//反向转动90
   }

   }

   var flag = false;
   for (var i = 0, len = this.cubeRotateStatus.length; i < len; i++) {
   if (this.cubeRotateStatus[i]) {
    flag = true;
    break;
   }
   }
   if (!flag) {//一个都没转的情况 则强制补充一个
   var index = this.random(1, this.dimension);
   this.rotateBox(this.angle, rotateDirect, index, getFaceFun.call(this, index)); //正向转动90
   this.cubeRotateStatus[index - 1] = 1;//全都不转动 默认选出一个 使其正向转动指定度数
   }
   setTimeout(this.timerFun, 100);
   this.rollMoveStack.push({ rotateFace: this.rotateFace, cubeRotateStatus: this.cubeRotateStatus });//记录动作状态
   if (this.rollMoveStack.length == this.rollbackPoint)//判断当达到阀值时切换动作方向为回归
   this.moveDirect = false;

  },
  moveRollBackCube: function () {
   var record = this.rollMoveStack.pop(), getFaceFun;
   this.rotateFace = record.rotateFace;
   this.isRunning = 0;
   switch (record.rotateFace) {
   case "rotateX": getFaceFun = this.getXFace; break;
   case "rotateY": getFaceFun = this.getYFace; break;
   case "rotateZ": getFaceFun = this.getZFace; break;
   }
   this.cubeRotateStatus = [];
   for (var i = 0, len = record.cubeRotateStatus.length; i < len; i++) {
   var dimensionIndex = i+1, status = record.cubeRotateStatus[i];
   if (status == 1) {
    this.cubeRotateStatus.push(2);//1 变2,2变1
    this.rotateBox(-this.angle, record.rotateFace, dimensionIndex, getFaceFun.call(this, dimensionIndex)); //反向转动90
   }
   else if (status == 2) {
    this.cubeRotateStatus.push(1);//1 变2,2变1
    this.rotateBox(this.angle, record.rotateFace, dimensionIndex, getFaceFun.call(this, dimensionIndex)); //反向转动90
   }
   else {
    this.cubeRotateStatus.push(0);
   }
   }
   setTimeout(this.timerFun, 100);
   if (this.rollMoveStack.length == 0)//判断当达到0时切换动作为正向随机
   this.moveDirect = true;
  },
  intersect: function (source, target) {
   var data = [];
   for (var i = 0, len = source.length; i < len; i++) {
   var index = target.indexOf(source[i]);
   if (index >= 0)
    data.push(source[i])
   }
   return data;
  },
  orderByDesc: function (datas) {
   var temp;
   for (var i = 0; i < datas.length - 1; i++) {
   for (var j = i + 1; j < datas.length; j++) {
    if (parseFloat(datas[i].index) < parseFloat(datas[j].index)) {
    temp = datas[i];
    datas[i] = datas[j];
    datas[j] = temp;
    }
   }
   }
   return datas;
  },
  getSideBackGround: function (sideFaces, face) {
   var backGrounds = [];
   for (var i = 0, len = sideFaces.length; i < len; i++) {
   backGrounds.push(sideFaces[i][face].style.background);
   }
   return backGrounds;
  },
  setRotateDirectSideBackGround: function (faceCubes, sideFace, offset, status) {
   var oldSides = this.getSideCubes(faceCubes, 0), backColor = [];
   var offsetNIndex, offsetPIndex;
   for (var j = 0; j < 4; j++) {
   offsetPIndex = (j - offset + 4) % 4;
   offsetNIndex = (j + offset) % 4;
   if (this.rotateFace == "rotateY") {
    if (status == 1)//正向
    {
    backColor[j] = this.getSideBackGround(oldSides[offsetPIndex], sideFace[offsetPIndex]);
    }
    else//反向
    {
    backColor[j] = this.getSideBackGround(oldSides[offsetNIndex], sideFace[offsetNIndex]);
    }
   }
   else {
    if (status == 2)//正向
    {
    backColor[j] = this.getSideBackGround(oldSides[offsetPIndex], sideFace[offsetPIndex]);
    }
    else//反向
    {
    backColor[j] = this.getSideBackGround(oldSides[offsetNIndex], sideFace[offsetNIndex]);
    }
   }

   }
   for (var j = 0; j < 4; j++) {
   for (var k = 0; k < oldSides[j].length; k++) {
    oldSides[j][k][sideFace[j]].style.background = backColor[j][k];
   }
   }
  },
  setRotateOtherDirectSideBackGround: function (faceCubes, otherFace, offset, status) {
   var oldSides = [], backColor = [];
   var offsetNIndex, offsetPIndex;
   for (var i = 0; i <= parseInt(this.dimension / 2) - 1; i++) {
   oldSides = this.getSideCubes(faceCubes, i), backColor = [];
   for (var j = 0; j < 4; j++) {
    offsetPIndex = (j - offset + 4) % 4;
    offsetNIndex = (j + offset) % 4;
    if (this.rotateFace == "rotateY") {
    if (status == 1)//正向
    {
     backColor[j] = this.getSideBackGround(oldSides[offsetPIndex], otherFace);
    }
    else//反向
    {
     backColor[j] = this.getSideBackGround(oldSides[offsetNIndex], otherFace);
    }
    }
    else {
    if (status == 2)//正向
    {
     backColor[j] = this.getSideBackGround(oldSides[offsetPIndex], otherFace);
    }
    else//反向
    {
     backColor[j] = this.getSideBackGround(oldSides[offsetNIndex], otherFace);
    }
    }

   }
   for (var j = 0; j < 4; j++) {
    for (var k = 0; k < oldSides[j].length; k++) {
    oldSides[j][k][otherFace].style.background = backColor[j][k];
    }
   }
   }

  },
  animationEnd: function () {
   var offset = this.angle / 90, faceCubes = [], otherFace;
   var zSideFace = ["top", "left", "bottom", "right"], xSideFace = ["back", "top", "front", "bottom"], ySideFace = ["back", "left", "front", "right"], sideFace = [];
   for (var i = 0, len = this.cubeRotateStatus.length; i < len; i++) {
   var status = this.cubeRotateStatus[i];
   if (status) {
    var dimensionIndex = i + 1;
    switch (this.rotateFace) {
    case "rotateX": faceCubes = this.getXFace(dimensionIndex); sideFace = xSideFace; if (dimensionIndex == 1) otherFace = "left"; else if (dimensionIndex == this.dimension) otherFace = "right"; break;
    case "rotateY": faceCubes = this.getYFace(dimensionIndex); sideFace = ySideFace; if (dimensionIndex == 1) otherFace = "top"; else if (dimensionIndex == this.dimension) otherFace = "bottom"; break;
    case "rotateZ": faceCubes = this.getZFace(dimensionIndex); sideFace = zSideFace; if (dimensionIndex == 1) otherFace = "back"; else if (dimensionIndex == this.dimension) otherFace = "front"; break;
    }
    this.setRotateDirectSideBackGround(faceCubes, sideFace, offset, status);
    if (dimensionIndex == 1 || dimensionIndex == this.dimension)
    this.setRotateOtherDirectSideBackGround(faceCubes, otherFace, offset, status);
   }

   }
   // console.info(this.rollMoveStack.length + "," + this.moveDirect);
   if (this.moveDirect)
   this.moveMagicCube();
   else
   this.moveRollBackCube();
   // alert("运行结束");
  },
  bindAnimationEvent: function () {
   var loopMove = function () {
   cache.magicCube.isRunning--;//由于按组转动,顾要等组成员都完成再进行新的动画
   if (cache.magicCube.isRunning == 0)
    cache.magicCube.animationEnd();
   }
   for (var i = 0; i < this.count; i++) {

   this.prefixedEvent(this.cubes[i].Box, "AnimationEnd", loopMove, true);
   }
   cache.magicCube = this;//缓存,避免内存泄露
  },
  rotateBox: function (angle, rotateDirect, faceIndex, cubes) {
   if (cubes != null) {
   var startStatus = rotateDirect + "(0deg)", endStatus = rotateDirect + "(" + angle + "deg)";
   // this.changeAnimationStatus("mydhua", startStatus, endStatus)
   for (var i = 0, len = cubes.length; i < len; i++) {
    var ruleName = "roateRule" + faceIndex + i;
    this.isRunning++;//组成员转动统计
    //if (cubes[i].rotateTransfrom != "")
    // startStatus = cubes[i].rotateTransfrom;
    cubes[i].rotateTransfrom = endStatus;
    if (this.findKeyframesRule(ruleName) == null)
    this.createKeyframesRule(ruleName, cubes[i].intalTransform + " " + startStatus, cubes[i].intalTransform + " " + endStatus);
    else
    this.changeAnimationStatus(ruleName, cubes[i].intalTransform + " " + startStatus, cubes[i].intalTransform + " " + endStatus);
    cubes[i].Box.style[this.browserPrefix + "AnimationName"] = "none";
    this.cubeMoveQueue.push({ cube: cubes[i], rule: ruleName });
   }
   }
  },
  findKeyframesRule: function (rule) {
   var ruleName = this.browserPrefix == "" ? "KEYFRAMES_RULE" : this.browserPrefix.toUpperCase() + "_KEYFRAMES_RULE";
   var ss = document.styleSheets;
   for (var i = 0; i < ss.length; ++i) {
   for (var j = 0; j < ss[i].cssRules.length; ++j) {
    if (ss[i].cssRules[j].type == window.CSSRule[ruleName] && ss[i].cssRules[j].name == rule) { return ss[i].cssRules[j]; }
   }
   }
   return null;
  },
  createKeyframesRule: function (rule, startStatus, endStatus) {
   var prefix = this.browserPrefix == "" ? "" : "-" + this.browserPrefix + "-";
   var sheet;
   if (document.styleSheets.length < 1)
   sheet = this.createSheets();
   else
   sheet = document.styleSheets[0];
   var selectorText = "@" + prefix + "keyframes " + rule;
   var cssText = "0% { " + prefix + "transform: " + startStatus + "; } 100% { " + prefix + "transform: " + endStatus + "; }"
   if (sheet.insertRule) {
   sheet.insertRule(selectorText + "{" + cssText + "}", 0);
   } else if (sheet.addRule) {//兼容IE
   sheet.addRule(selectorText, cssText, 0);
   }
  },
  removeKeyframeRule: function (keyframes) {
   var length = keyframes.cssRules.length;
   var keyframeString = [];
   for (var i = 0; i < length; i++) {
   keyframeString.push(keyframes.cssRules[i].keyText);
   }
   //移除动画帧规则
   for (var i = 0, j = length; i < j; i++) {
   if (this.browserPrefix == "webkit" || this.browserPrefix == "Moz")
    keyframes.deleteRule(keyframeString[i]);
   else
    keyframes.deleteRule(i); //兼容IE
   }
  },
  changeAnimationStatus: function (animationName, startStatus, endStatus) {
   var keyframes = this.findKeyframesRule(animationName);
   this.removeKeyframeRule(keyframes);
   //重新设置帧规则
   var prefix = this.browserPrefix == "" ? "" : "-" + this.browserPrefix + "-";
   keyframes.appendRule("0% { " + prefix + "transform: " + startStatus + "; }");
   keyframes.appendRule("100% { " + prefix + "transform: " + endStatus + "; }");
  },
  createSheets: function () {
   // 创建 <style> 标签
   var style = document.createElement("style");
   // 可以添加一个媒体(/媒体查询,media query)属性
   // style.setAttribute("media", "screen")
   // style.setAttribute("media", "only screen and (max-width : 1024px)")
   // 对WebKit hack :(
   style.appendChild(document.createTextNode(""));
   // 将 <style> 元素加到页面中
   document.head.appendChild(style);
   return style.sheet;
  },
  prefixedEvent: function (element, type, callback, isAdd) {
   var pfx = ["webkit", "moz", "MS", "o", ""];
   for (var p = 0; p < pfx.length; p++) {
   if (!pfx[p]) type = type.toLowerCase();
   if (isAdd)
    element.addEventListener(pfx[p] + type, callback, false);
   else
    element.removeEventListener(pfx[p] + type, callback, false);
   }
  },
  start: function () {
   this.css();
   this.prefix();
   this.create3dScene();
   this.createMagicCube();
   this.drawBackGroundColor();
   this.bindAnimationEvent();//绑定动画播放完成事件
   this.moveMagicCube(); //立即开始动画
   // this.timer = setInterval(this.timerFun, 100);
  },
  timerFun: function () {
   var _this = cache.magicCube;
   if (_this.isRunning >= _this.dimension) {
   for (var i = 0, len = _this.cubeMoveQueue.length; i < len; i++) {
    var animation = _this.cubeMoveQueue.shift();
    animation.cube.Box.style[_this.browserPrefix + "Animation"] = animation.rule + " 2s linear 1"; // Chrome, Safari 和 Opera 代码
   }

   }

  },
  css: function () {
   var d = document,
   doc = d.documentElement,
   body = d.body;
   this.clientWidth = doc.clientWidth;
   this.clientHeight = doc.clientHeight;
   if (d.compatMode != "CSS1Compat") {
   this.clientWidth = body.clientWidth;
   this.clientHeight = body.clientHeight;
   }
   // console.log(this.width +'////'+ this.height)
  },
  random: function (min, max) {
   return (Math.random() * (max - min + 1) + min) >> 0;
  },
  prefix: function () {
   var N = navigator.appName, ua = navigator.userAgent, tem;
   var M = ua.match(/(opera|chrome|safari|firefox|msie)\/?\s*(\.?\d+(\.\d+)*)/i);
   if (M && (tem = ua.match(/version\/([\.\d]+)/i)) != null) M[2] = tem[1];
   M = M ? [M[1], M[2]] : [N, navigator.appVersion, '-?'];
   M = M[0];
   if (M == "Chrome") { this.browserPrefix = "webkit"; }
   if (M == "Firefox") { this.browserPrefix = "Moz"; }
   if (M == "Safari") { this.browserPrefix = "webkit"; }
   if (M == "MSIE") { this.browserPrefix = "ms"; }
  }

  };
 }(window));


 </script>

</head>
<body style="background-color:black">
 <script>
 var cube = new magicCube({ parent: null, dimension: 3, cubWidth: 100, cubHidth: 100, marginLeft: 10, marginTop: 10, marginZ: 10, cubZ: 100 });
 </script>

</body>
</html>

注:在此基础上可以加上鼠标控制事件,可以直接通过鼠标控制器任意方向的旋扭,也可以稍加改进用于炫酷展示图片!后续有时间我将加上这些功能,与大家再次分享!
