先给大家展示实现后效果:

为直观期间,先贴出来我做的效果

Arcgis for javascript如何实现百度地图ABCD marker效果?

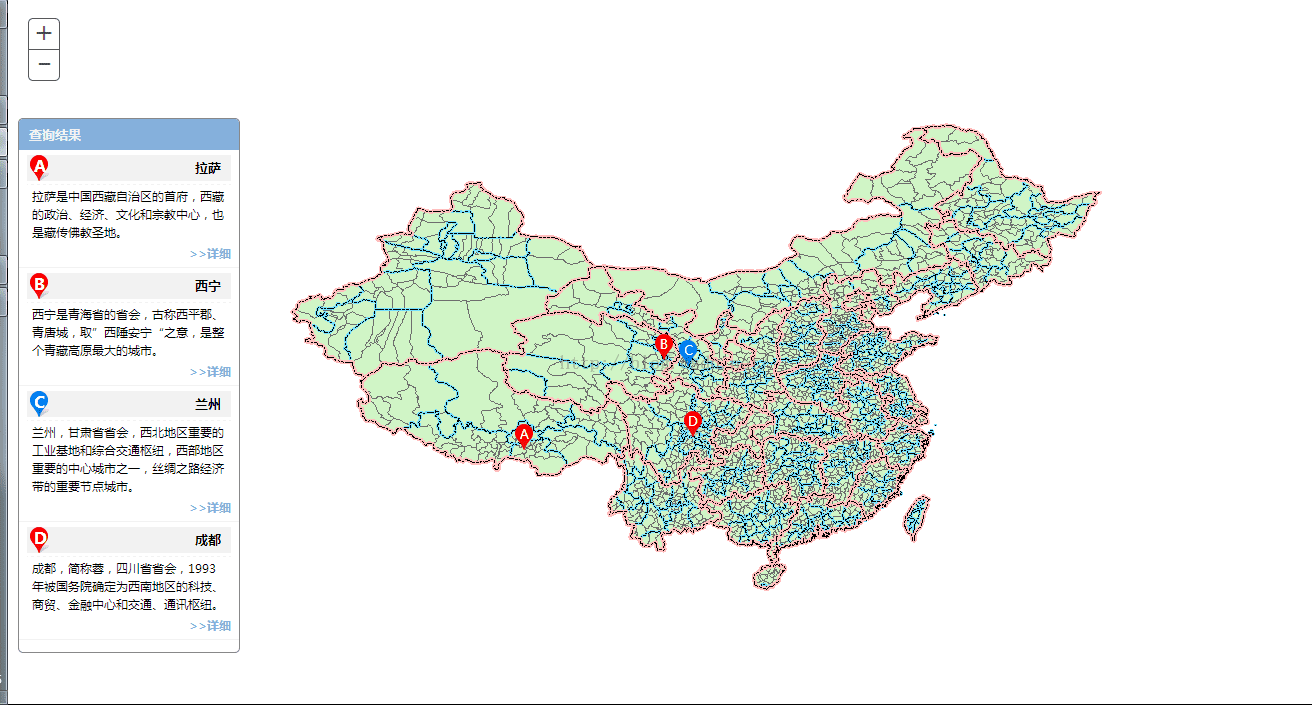

列表展示和地图展示以及联动

Arcgis for javascript如何实现百度地图ABCD marker效果?

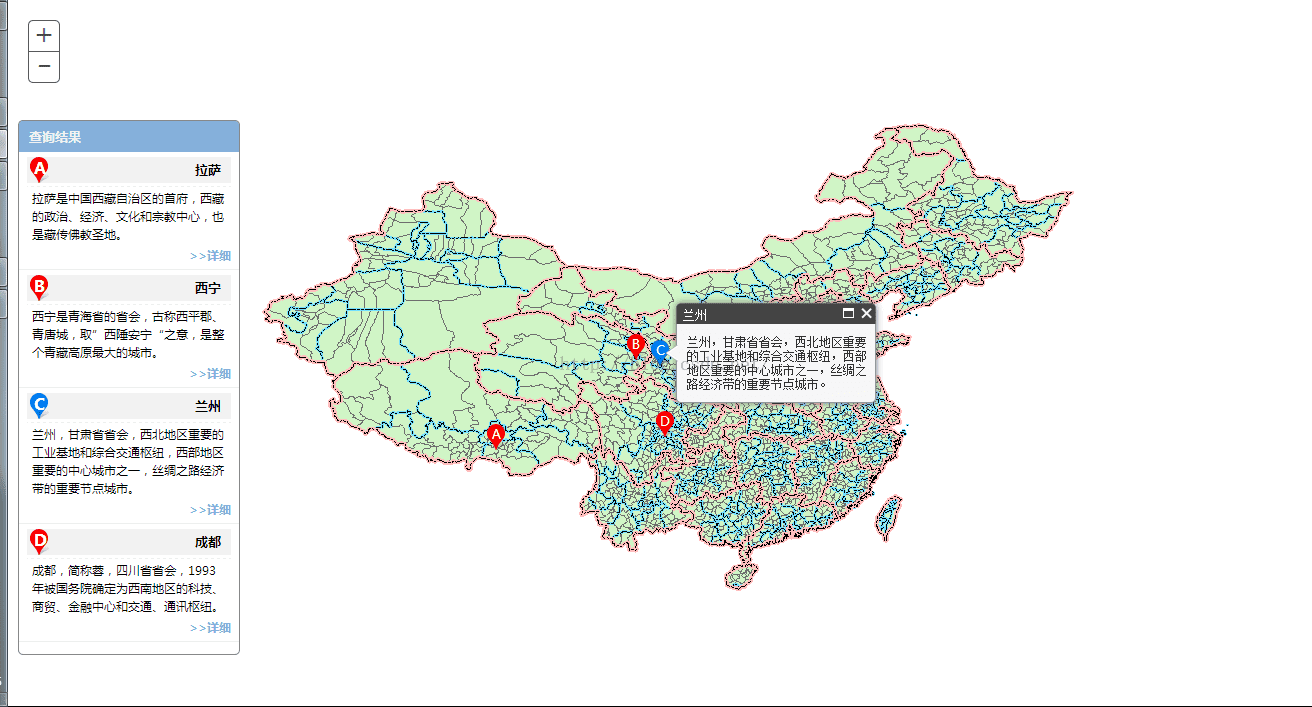

显示信息

实现思路:

1、列表与地图的互动

鼠标经过列表时,修改列表图标,并根据列表返回的值在地图上绘蓝色的marker;鼠标移出,修改列表图标为红色,清空地图marker图层。

关键代码:

title.on("mouseover",function(){
 var attr = $(this).data("attr");
 $("#icon"+attr.id).css("background","url('images/blue.png')");
 var pt=new Point(attr.x,attr.y,{"wkid":4326});
 var pms = new esri.symbol.PictureMarkerSymbol("images/blue.png",24,26)
 var gImg = new Graphic(pt,pms);
 gLyrHover.add(gImg);
});
title.on("mouseout",function(){
 var attr = $(this).data("attr");
 $("#icon"+attr.id).css("background","url('images/red.png')");
 gLyrHover.clear();
});

2、地图与列表的互动

鼠标经过地图红色的marker时,修改对应列表图标,并将红色 marker的图片换成蓝色的;鼠标移出,修改对应列表图标,并修改marker为红色。

关键代码:

gLyr.on("mouse-over",function(e){
 map.setMapCursor("pointer");
 var sms = e.graphic.symbol;
 sms.url = "images/blue.png";
 gLyr.redraw();
 $("#icon"+e.graphic.attributes.id).css("background","url('images/blue.png')");
});
gLyr.on("mouse-out",function(e){
 map.setMapCursor("default");
 var sms = e.graphic.symbol;
 sms.url = "images/red.png";
 gLyr.redraw();
 $("#icon"+e.graphic.attributes.id).css("background","url('images/red.png')");
});

3、地图上ABCD的文字是一个单独的图层,不参与互动。

4、数据以JSON形式存在。

var data = [
 {
 "id":"A","name":"拉萨", "x":91.162998, "y":29.71042,
 "desc":"拉萨是中国西藏自治区的首府,西藏的政治、经济、文化和宗教中心,也是藏传佛教圣地。"
 },
 {
 "id":"B", "name":"西宁","x":101.797303,"y":36.593642,
 "desc":"西宁是青海省的省会,古称西平郡、青唐城,缺西陲安宁“之意,是整个青藏高原最大的城市。"
 },
 {
 "id":"C","name":"兰州","x":103.584297,"y":36.119086,
 "desc":"兰州,甘肃省省会,西北地区重要的工业基地和综合交通枢纽,西部地区重要的中心城市之一,丝绸之路经济带的重要节点城市。"
 },
 {
 "id":"D","name":"成都","x":104.035508,"y":30.714179,
 "desc":"成都,简称蓉,四川省省会,1993年被国务院确定为西南地区的科技、商贸、金融中心和交通、通讯枢纽。"
 }
];

完整代码:

<!DOCTYPE html>
<html>
<head>
 <meta http-equiv="Content-Type" content="text/html; charset=utf-8">
 <meta name="viewport" content="initial-scale=1, maximum-scale=1,user-scalable=no"/>
 <title></title>
 <link rel="stylesheet" href="http://localhost/arcgis_js_api/library/3.9/3.9/js/esri/css/esri.css">
 <style type="text/css">
 html, body, #map {
 height: 100%;
 margin: 0;
 padding: 0;
 font-size: 62.5%;
 font-family:"微软雅黑";
 }
 .search-box{
 z-index: 99;
 background: #fff;
 border: 1px solid #888888;
 border-radius: 5px;
 width: 220px;
 max-height:600px;
 overflow-y: auto;
 position: absolute;
 top: 120px;
 left: 10px;
 }
 .search-box-title{
 padding: 6px 10px;
 text-align: left;
 font-size: 13px;
 font-weight: bold;
 color: #f2f2f2;
 background: #85b0db;
 }
 .search-box-result{
 list-style: none;
 margin-left:-40px;
 margin-top: 0px;
 }
 .search-box-result-item{
 border-bottom: 1px solid #eeeeee;
 padding: 5px 8px;
 }
 .search-name{
 float: right;
 font-weight: bold;
 font-size: 13px;
 margin-top: 3px;
 margin-right: 10px;
 }
 .search-name-title{
 background: #f2f2f2;
 }
 .search-name-title:hover{
 cursor: pointer;
 }
 .search-detail{
 border-top: 1px dashed #eeeeee;
 margin-top: 3px;
 padding: 3px 5px;
 line-height: 18px;
 }
 .search-icon{
 background: url("images/red.png");
 width: 24px;
 height: 26px;
 background-repeat: no-repeat;
 }
 .search-text{
 color: #ffffff;
 font-weight: bold;
 font-size: 16px;
 margin-left:7px ;
 }
 .detail{
 color: #85b0db;
 font-weight: bold;
 text-align: right;
 }
 .detail:hover{
 cursor: pointer;
 }
 </style>
 <script src="http://localhost/arcgis_js_api/library/3.9/3.9/init.js"></script>
 <script src="jquery-1.8.3.js"></script>
 <script type="text/javascript">
 var map;
 var data = [
 {
 "id":"A","name":"拉萨", "x":91.162998, "y":29.71042,
 "desc":"拉萨是中国西藏自治区的首府,西藏的政治、经济、文化和宗教中心,也是藏传佛教圣地。"
 },
 {
 "id":"B", "name":"西宁","x":101.797303,"y":36.593642,
 "desc":"西宁是青海省的省会,古称西平郡、青唐城,缺西陲安宁“之意,是整个青藏高原最大的城市。"
 },
 {
 "id":"C","name":"兰州","x":103.584297,"y":36.119086,
 "desc":"兰州,甘肃省省会,西北地区重要的工业基地和综合交通枢纽,西部地区重要的中心城市之一,丝绸之路经济带的重要节点城市。"
 },
 {
 "id":"D","name":"成都","x":104.035508,"y":30.714179,
 "desc":"成都,简称蓉,四川省省会,1993年被国务院确定为西南地区的科技、商贸、金融中心和交通、通讯枢纽。"
 }
 ];
 require([
  "esri/map",
  "esri/layers/ArcGISTiledMapServiceLayer",
  "esri/geometry/Point",
  "esri/layers/GraphicsLayer",
  "esri/graphic",
  "dojo/_base/Color",
  "dojo/domReady!"],
 function(Map,
  Tiled,
  Point,
  GraphicsLayer,
  Graphic,
  Color)
 {
  map = new Map("map",{logo:false});
  var tiled = new Tiled("http://localhost:6080/arcgis/rest/services/china/MapServer",{"id":"tiled"});
  map.addLayer(tiled);
  var mapCenter = new Point(103.847, 36.0473, {"wkid":4326});
  map.centerAndZoom(mapCenter,0);
  var gLyr = new GraphicsLayer({"id":"gLyr"});
  map.addLayer(gLyr);
  var gLyrHover = new GraphicsLayer({"id":"gLyrHover"});
  map.addLayer(gLyrHover);
  var gLyrLbl = new GraphicsLayer({"id":"gLyrLbl"});
  map.addLayer(gLyrLbl);
  map.on("load",function(){
  $("#search").show();
  for(var i=0;i<data.length;i++){
  var li = $("<li />").addClass("search-box-result-item").appendTo($("#result"));
  var name = $("<div />").addClass("search-name").html(data[i].name);
  var icon = $("<div />").addClass("search-icon")
   .attr("id","icon"+data[i].id)
   .append("<div class='search-text'>"+data[i].id+"</div>");
  var title = $("<div />").addClass("search-name-title")
   .append(name).append(icon).appendTo(li)
   .data("attr",data[i]);
  var desc = $("<div />").addClass("search-detail").html(data[i].desc).appendTo(li);
  var more = $("<div />").addClass("detail").appendTo(li).html(">>详细");
  title.on("mouseover",function(){
  var attr = $(this).data("attr");
  $("#icon"+attr.id).css("background","url('images/blue.png')");
  var pt=new Point(attr.x,attr.y,{"wkid":4326});
  var pms = new esri.symbol.PictureMarkerSymbol("images/blue.png",24,26)
  var gImg = new Graphic(pt,pms);
  gLyrHover.add(gImg);
  });
  title.on("mouseout",function(){
  var attr = $(this).data("attr");
  $("#icon"+attr.id).css("background","url('images/red.png')");
  gLyrHover.clear();
  });
  title.on("click",function(){
  var attr = $(this).data("attr");
  showCity(attr);
  });
  var pt=new Point(data[i].x,data[i].y,{"wkid":4326});
  var pms = new esri.symbol.PictureMarkerSymbol("images/red.png",24,26)
  var gImg = new Graphic(pt,pms,data[i]);
  gLyr.add(gImg);
  var font = new esri.symbol.Font();
  font.setSize("10pt");
  font.setFamily("微软雅黑");
  var text = new esri.symbol.TextSymbol(data[i].id);
  text.setOffset(0,-2);
  text.setFont(font);
  text.setColor(new dojo.Color([255,255,255,100]));
  var gLbl = new esri.Graphic(pt,text,data[i]);
  gLyrLbl.add(gLbl);
  }
  gLyr.on("mouse-over",function(e){
  map.setMapCursor("pointer");
  var sms = e.graphic.symbol;
  sms.url = "images/blue.png";
  gLyr.redraw();
  $("#icon"+e.graphic.attributes.id).css("background","url('images/blue.png')");
  });
  gLyr.on("mouse-out",function(e){
  map.setMapCursor("default");
  var sms = e.graphic.symbol;
  sms.url = "images/red.png";
  gLyr.redraw();
  $("#icon"+e.graphic.attributes.id).css("background","url('images/red.png')");
  });
  gLyr.on("click",function(e){
  var attr = e.graphic.attributes;
  showCity(attr);
  });
  });

  function showCity(attr){
  var pt=new Point(attr.x,attr.y,{"wkid":4326});
  map.infoWindow.setTitle(attr.name);
  map.infoWindow.setContent(attr.desc);
  map.infoWindow.resize(200,80);
  map.infoWindow.show(pt);
  map.centerAndZoom(pt,0);
  }
 });
 </script>
</head>
<body>
<div id="search" class="search-box" style="display: none;">
 <div class="search-box-title">查询结果</div>
 <ul class="search-box-result" id="result">
 </ul>
</div>
<div id="map">
</div>
</body>
</html>

以上内容就是脚本之家小编给大家分享的基于Arcgis for javascript实现百度地图ABCD marker的效果,希望大家喜欢。
