如何使用Canvas裁剪clip函数？

在canvas中，可以使用clip()函数裁剪区域，设定裁剪区域后，只有在区域内的图像才能显示，其余部分会被屏蔽掉

未使用裁剪绘制一个圆

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title></title>
  <style>
    *{margin:0; padding:0;}
    html, body{width:100%; height:100%; overflow:hidden; background-color:#AFAFAF;}
  </style>
</head>
<body>
  <canvas id="canvas"></canvas>
  <script>
    var canvas = document.getElementById('canvas'),
      context = canvas.getContext('2d');
    canvas.width = document.body.clientWidth;
    canvas.height = document.body.clientHeight;
    context.lineWidth = 3;
    context.strokeStyle = 'red';
    context.beginPath();
    context.arc(200, 200, 100, (Math.PI / 180) * 0, (Math.PI / 180) * 360, false);
    context.stroke();
    context.closePath();
  </script>
</body>
</html>

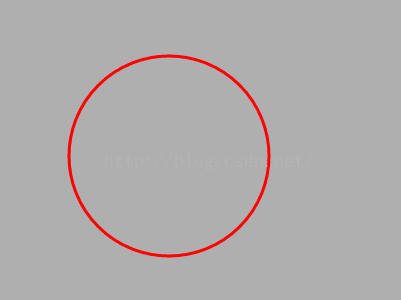

效果

如何使用Canvas裁剪clip函数？

使用clip()裁剪区域

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title></title>
  <style>
    *{margin:0; padding:0;}
    html, body{width:100%; height:100%; overflow:hidden; background-color:#AFAFAF;}
  </style>
</head>
<body>
  <canvas id="canvas"></canvas>
  <script>
    var canvas = document.getElementById('canvas'),
      context = canvas.getContext('2d');
    canvas.width = document.body.clientWidth;
    canvas.height = document.body.clientHeight;
    context.lineWidth = 3;
    context.strokeStyle = 'red';
    context.rect(0, 0, 200, 200);
    context.clip();
    context.beginPath();
    context.arc(200, 200, 100, (Math.PI / 180) * 0, (Math.PI / 180) * 360, false);
    context.stroke();
    context.closePath();
  </script>
</body>
</html>

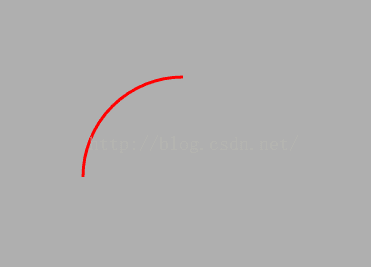

效果

如何使用Canvas裁剪clip函数？

也可以使用arc绘制圆形的剪裁区域

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title></title>
  <style>
    *{margin:0; padding:0;}
    html, body{width:100%; height:100%; overflow:hidden; background-color:#AFAFAF;}
  </style>
</head>
<body>
  <canvas id="canvas"></canvas>
  <script>
    var canvas = document.getElementById('canvas'),
      context = canvas.getContext('2d');
    canvas.width = document.body.clientWidth;
    canvas.height = document.body.clientHeight;
    context.lineWidth = 3;
    context.strokeStyle = 'red';
    context.arc(100, 100, 150, (Math.PI / 180) * 0, (Math.PI / 180) * 360, false);
    context.clip();
    context.beginPath();
    context.arc(200, 200, 100, (Math.PI / 180) * 0, (Math.PI / 180) * 360, false);
    context.stroke();
    context.closePath();
  </script>
</body>
</html>

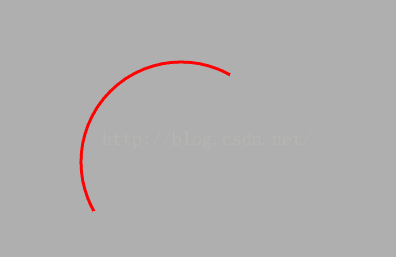

效果

如何使用Canvas裁剪clip函数？

使用save和restore实现只裁剪单个路径

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title></title>
  <style>
    *{margin:0; padding:0;}
    html, body{width:100%; height:100%; overflow:hidden; background-color:#AFAFAF;}
  </style>
</head>
<body>
  <canvas id="canvas"></canvas>
  <script>
    var canvas = document.getElementById('canvas'),
      context = canvas.getContext('2d');
    canvas.width = document.body.clientWidth;
    canvas.height = document.body.clientHeight;
    context.lineWidth = 3;
    context.strokeStyle = 'red';
    context.save();
    context.rect(0, 0, 200, 200);
    context.clip();
    context.beginPath();
    context.arc(200, 200, 100, (Math.PI / 180) * 0, (Math.PI / 180) * 360, false);
    context.stroke();
    context.closePath();
    context.restore();
    context.beginPath();
    context.arc(250, 250, 100, (Math.PI / 180) * 0, (Math.PI / 180) * 360, false);
    context.stroke();
    context.closePath();
  </script>
</body>
</html>

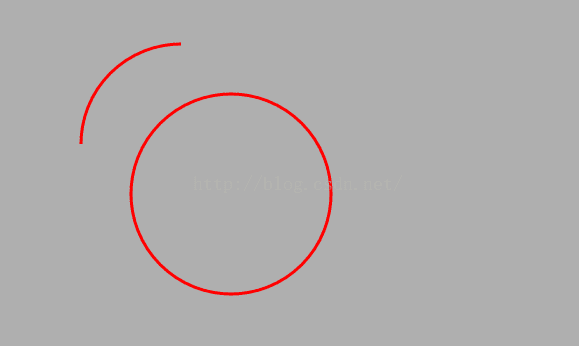

效果

如何使用Canvas裁剪clip函数？

以上就是本文的全部内容，希望对大家的学习有所帮助，也希望大家多多支持路饭。
