webwork+freemarker+hibernate开发样版图像管理系统的详细介绍
webwork+freemarker+hibernate开发样版图像管理系统的详细介绍
一、项目背景
为某企业的工艺样版图实现信息化管理，方便对样版图所要进行的人工操作。

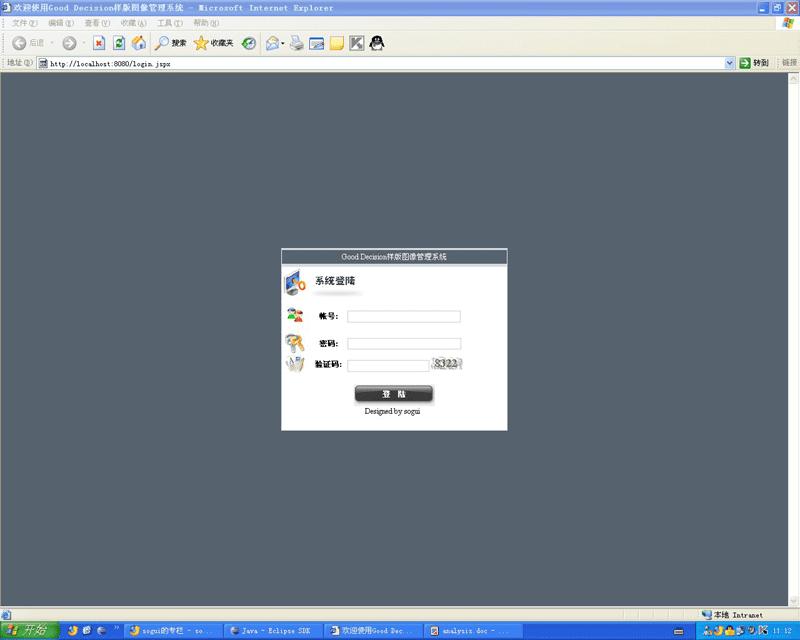

1) 带用户,密码登录;
2) 用户身份分级别, 不同身份的用户看不同的样办图;
3) 带搜索功能;
4) 点击样办图显示全图和属性;
二、系统环境
开发环境：Windows XP Eclipse3.1 JDK1.5 Tomcat5.5.17
系统架构：Webwork2.2.4+Freemarker-2.3.8+Hibernate-3.1.3
后台数据库：Mysql-5.0.13
第三方类库：webwork-2.2.4 log4j-1.2.8 hibernate-3.1.3 dwr-1.0 dom4j-1.6.1
mysql-connector-java-3.1.12-bin.jar fileupload-1.1.1 spring-1.2.6 freemarker-2.3.8
三、需求分析
实现用户对图片的浏览、上传、删除等操作，图片的显示可以分为：列表显示、缩略图显示、幻灯片显示，同时能详细显示某个图片的详细描述，上传时间，规格、大孝上传人等。系统管理员可以设置系统用户组，超级用户: 拥有所有功能添加, 删除, 修改 和浏览所有目录，受限用户: a. 可添加文件, 浏览指定目录b. 只可浏览指定目录文件，系统管理员可以对图片进行分类存储：A) 可以按日期分(09/07/2006)；B) 可以按类型分(类型有: a) 电脑袋 b) 旅行包 c) 行李包 d) 公文包 e)，创建目录名，同时指定该目录所属用户组。可以对图片文件按要求进行搜索：A) 可以按名称搜索 B) 可以按分类搜索 C) 搜索某时间段产品 ..... 搜索出来的产品可以以缩略图显示 D) 按用户搜索,搜索后显示该用户的所有图片
四、模块设计

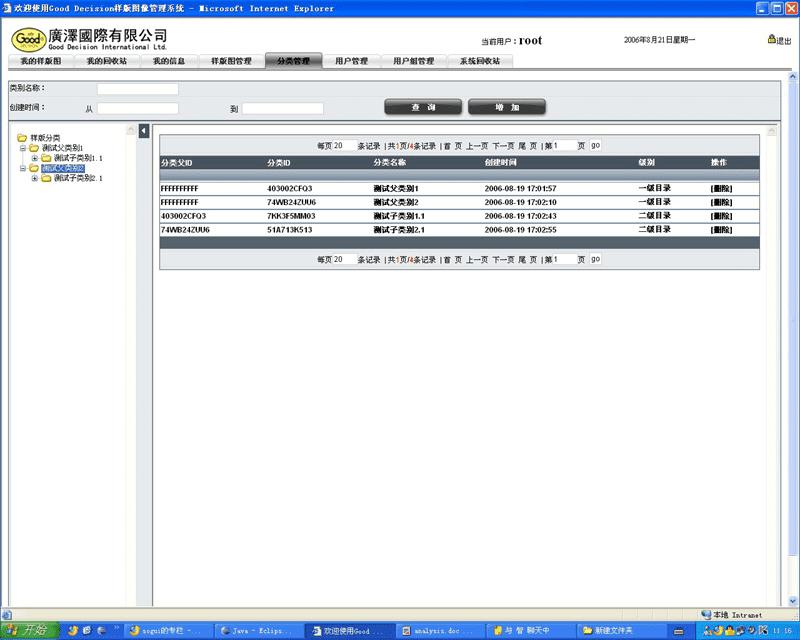

分类管理
系统管理员可以增加、删除、编辑图片目录，同时更改图片目录的所属用户组

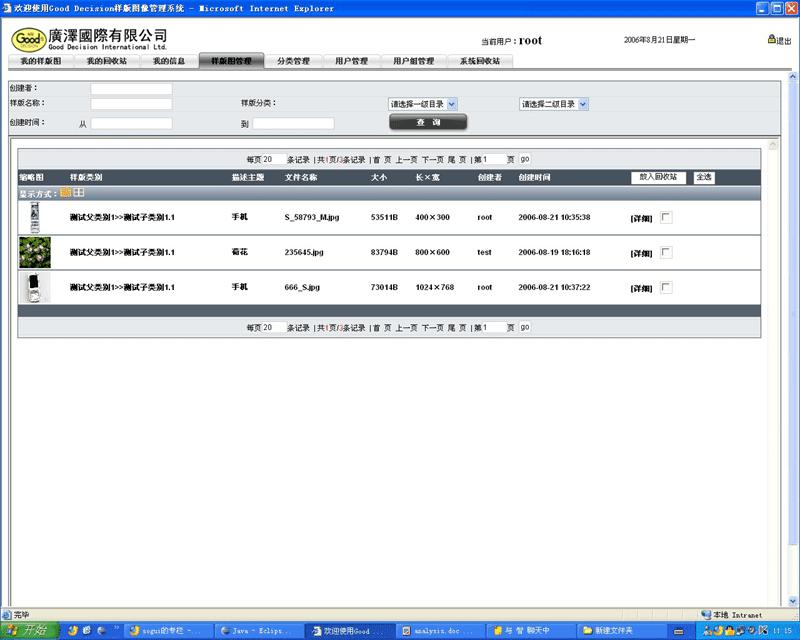

样版图管理
用户可以查询、上传图片到指定分类的目录路径，删除、编辑（只限管理员身份且具有相应权限）

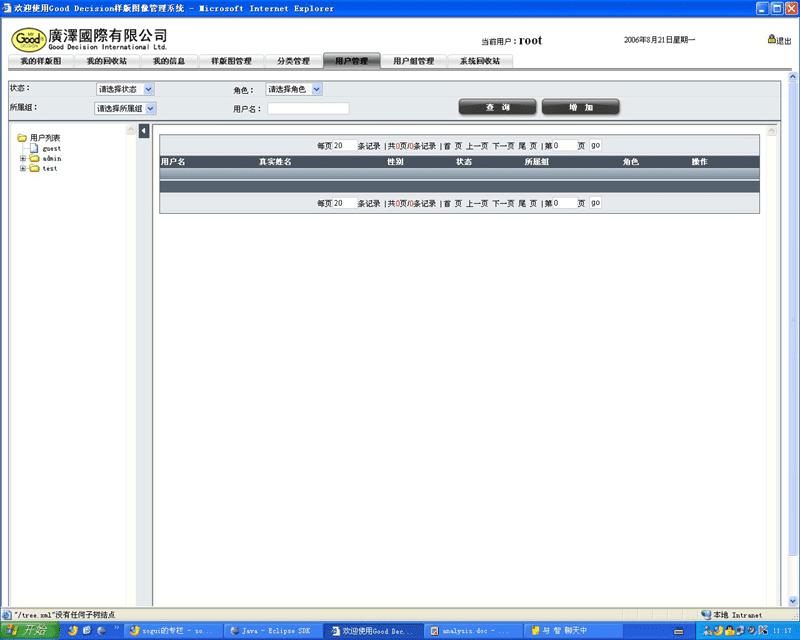

用户管理
管理员可以增加、删除、编辑用户，指定用户所属用户组

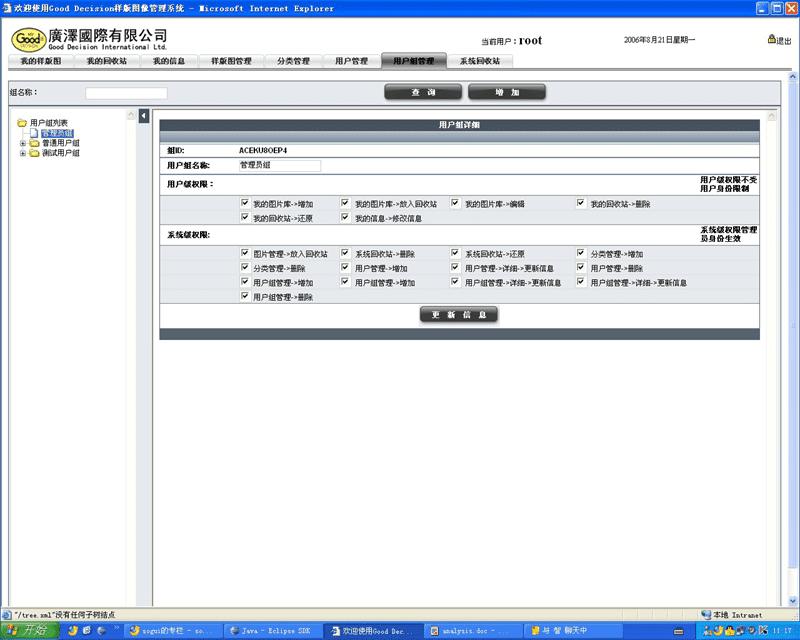

用户组管理
管理员可以增加、删除、编辑用户组信息
系统回收站
存放待删除的图片文件或目录文件（只限管理员身份且具有相应权限）
我的样版图
同样版图管理相似，全部用户可使用，区别在于，只能查询和处理所属用户创建的图象

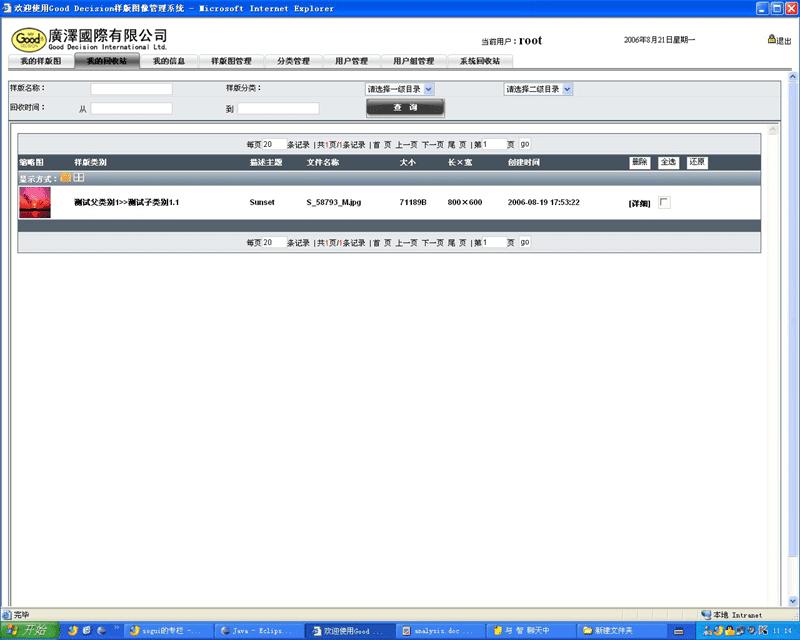

个人回收站
同系统回收站，区别于用户级和系统级的使用

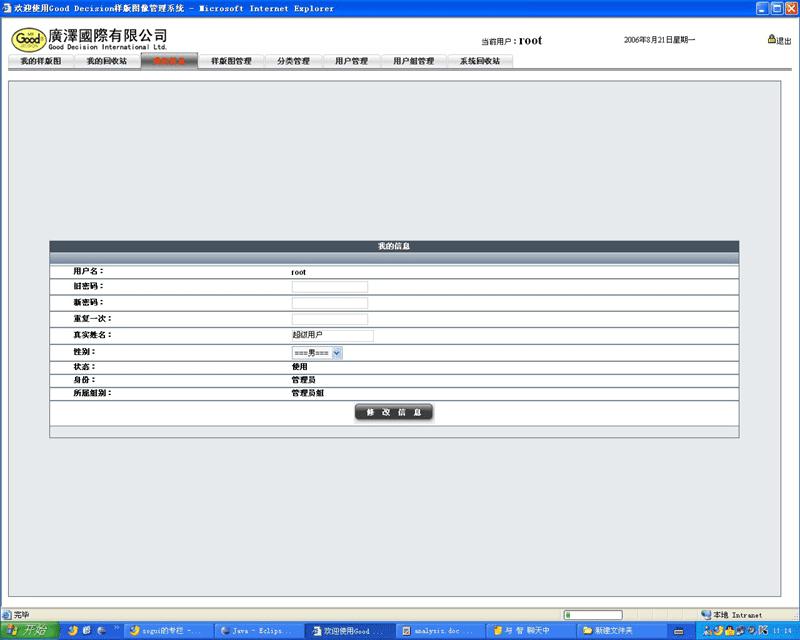

我的个人信息
登陆系统的用户对个人信息进行修改，密码等

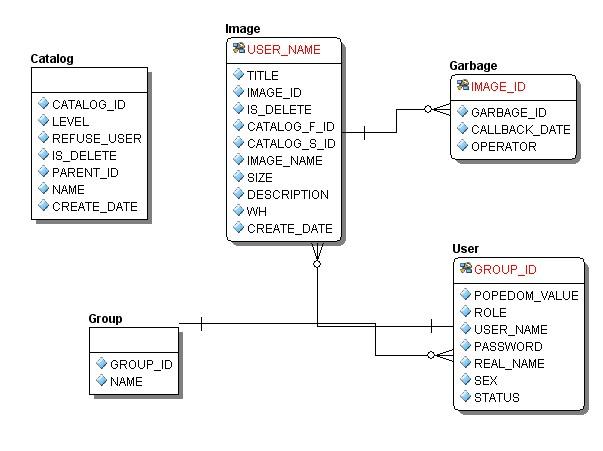

五、数据库设计
CREATE TABLE `scool_catalog` (
`catalog_id` varchar(10) NOT NULL,
`parent_id` varchar(10) NOT NULL default 'FFFFFFFFFF',
`name` varchar(20) NOT NULL,
`refuse_user` text,
`create_date` datetime default NULL,
`level` char(1) NOT NULL default '0',
PRIMARY KEY (`catalog_id`)
) ENGINE=MyISAM DEFAULT CHARSET=utf8;
CREATE TABLE `scool_group` (
`group_id` varchar(10) NOT NULL,
`group_name` varchar(20) NOT NULL,
`popedom_value` bigint(64) default NULL,
PRIMARY KEY (`group_id`)
) ENGINE=MyISAM DEFAULT CHARSET=utf8;
CREATE TABLE `scool_image` (
`image_id` varchar(10) NOT NULL,
`file_name` varchar(60) NOT NULL,
`is_delete` char(1) NOT NULL default '0',
`catalog_f_id` varchar(10) NOT NULL,
`catalog_s_id` varchar(10) NOT NULL,
`image_name` varchar(60) NOT NULL,
`size` int(32) NOT NULL default '0',
`description` text,
`create_date` datetime NOT NULL,
`WH` varchar(20) default NULL,
`user_name` varchar(20) default NULL,
`operator` varchar(20) default NULL,
`remove_date` datetime default NULL,
PRIMARY KEY (`image_id`),
KEY `title_index` (`file_name`),
KEY `user_name_index` (`user_name`),
KEY `operator_index` (`operator`),
KEY `image_name_index` (`image_name`)
) ENGINE=MyISAM DEFAULT CHARSET=utf8;
CREATE TABLE `scool_user` (
`user_name` varchar(20) NOT NULL,
`password` varchar(32) NOT NULL,
`real_name` varchar(10) default NULL,
`sex` char(1) NOT NULL default '0',
`status` char(1) NOT NULL default '0',
`group_id` varchar(10) default NULL,
`role` char(1) NOT NULL default '0',
PRIMARY KEY (`user_name`)
) ENGINE=MyISAM DEFAULT CHARSET=utf8;

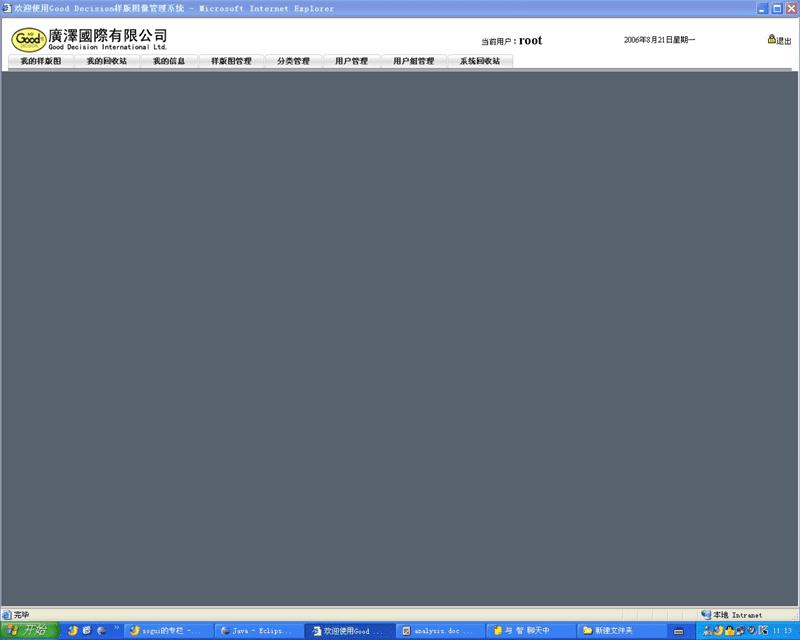

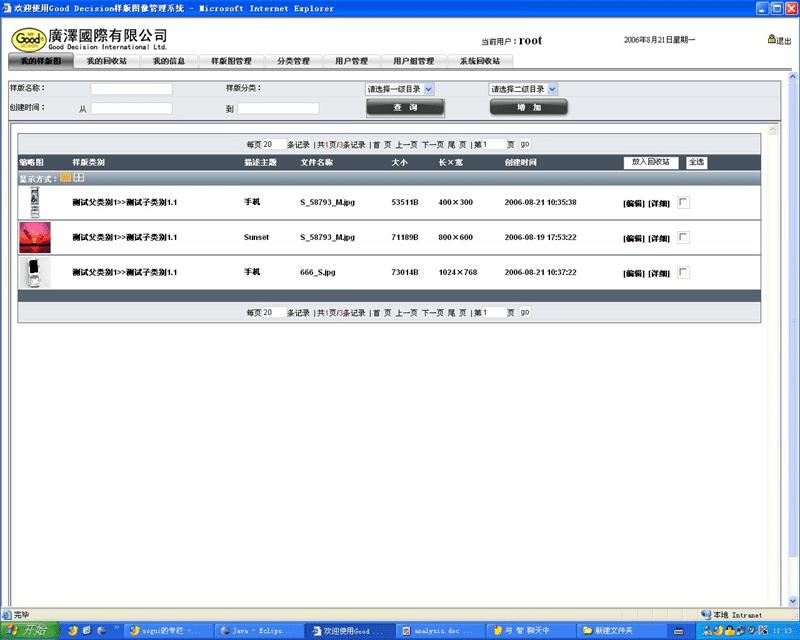

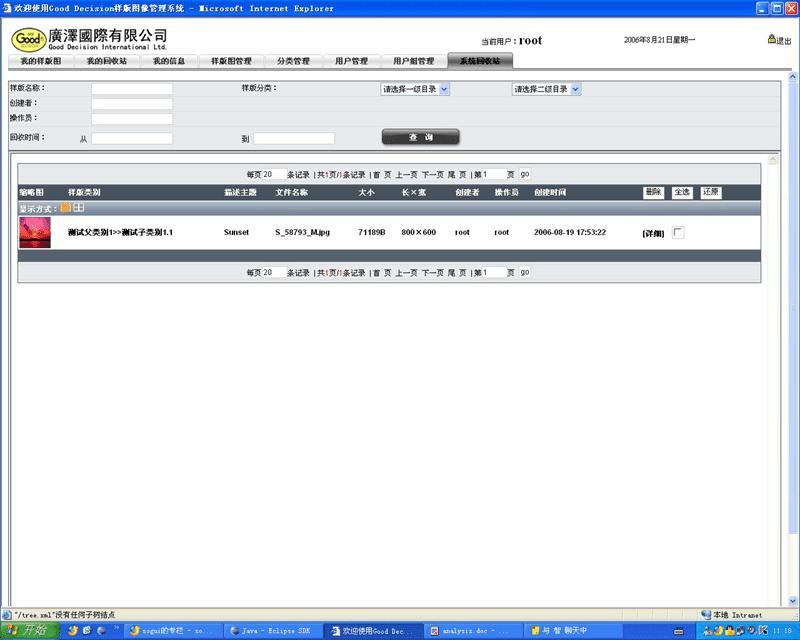

六、系统预览
七、详细设计（节选）
1.数据访问核心类HibernateDao.java
/**
* HibernateDao
*/
package com.school71.imageims.dao;
import java.io.File;
import java.io.IOException;
import java.io.Serializable;
import java.math.BigDecimal;
import java.math.BigInteger;
import java.util.Calendar;
import java.util.Date;
import java.util.List;
import java.util.Map;
import java.util.Iterator;
//import java.lang.reflect.Field;
import com.school71.imageims.model.Garbage;
import com.school71.imageims.model.Image;
import com.school71.imageims.util.GeneratorUtil;
import com.school71.imageims.util.HibernateUtil;
import com.school71.imageims.util.FileUtil;
import com.school71.imageims.cfg.Config;
import org.hibernate.CacheMode;
import org.hibernate.HibernateException;
import org.hibernate.Query;
import org.hibernate.SQLQuery;
import org.hibernate.Session;
import org.hibernate.Transaction;
import org.hibernate.proxy.HibernateProxy;
import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;
/**
* @author <a href="mailto:sogui@126.com">sogui</a>
* @version 1.0
* @date 2006 2006-9-18 22:38:20
*/
public class HibernateDao {
private static final Log log=LogFactory.getLog(HibernateDao.class);
public static final String SUPER_USER_NAME="root";
/**
*
* @param hql
* @return
* @TODO get a data object by specify hql
*/
@SuppressWarnings("finally")
protected Object getDataByHql(String hql){
Object object=null;
Session session=openSession();
Transaction ts=session.getTransaction();
try {
ts.begin();
Query query=session.createQuery(hql);
//.setCacheable(true)
//.setCacheMode(CacheMode.NORMAL);
object=query.uniqueResult();
ts.commit();
} catch (HibernateException e) {
log.error("Error to get a data object by hql=:"+hql,e);
ts.rollback();
}finally{
//closeSession();
return object;
}
}
/**
*
* @param clazz
* @param param
* @param value
* @param operator
* @return
* @TODO
*/
protected Object getData(Class clazz,String[]param,String[]value,String operator){
StringBuffer sb=new StringBuffer();
sb.append("from ");
sb.append(clazz.getSimpleName());
sb.append(" as tb");
sb.append(" where");
for(int i=0;i<param.length;i++){
sb.append(" tb.");
sb.append(param[i]);
sb.append(" =");
sb.append("'");
sb.append(value[i]);
sb.append("'");
if(i!=param.length-1){
sb.append(operator);
}
}
return getDataByHql(sb.toString());
}
protected Object getData(Class clazz,Map<String,String> paramMap,String operator){
StringBuffer sb=new StringBuffer();
sb.append("from ");
sb.append(clazz.getSimpleName());
sb.append(" as tb");
sb.append(" where");
for(Iterator it=paramMap.keySet().iterator();it.hasNext();){
String key=(String)it.next();
sb.append(" tb.");
sb.append(key);
sb.append("='");
sb.append(paramMap.get(key));
sb.append("'");
if(it.hasNext()){
sb.append(operator);
}
}
return getDataByHql(sb.toString());
}
/**
* if close the session then lazy function will not be executed
* @param clazz
* @param key
* @return
* @TODO
*/
@SuppressWarnings("finally")
protected Object getDataByKey(Class clazz,Serializable key){
Object object=null;
Session session=openSession();
Transaction ts=session.getTransaction();
try {
ts.begin();
object=session.get(clazz,key);
ts.commit();
} catch (HibernateException e) {
ts.rollback();
log.error("Error to get a "+clazz.getName()+" data object by key="+key,e);
}finally{
//closeSession();
return object;
}
}
@SuppressWarnings("finally")
protected List getDataListByHql(String hql,int pageNo,int pageSize){
List list=null;
Session session=openSession();
Transaction ts=session.getTransaction();
try {
ts.begin();
Query query=session.createQuery(hql)
//.setCacheable(true)
//.setCacheMode(CacheMode.NORMAL)
.setFirstResult((pageNo-1) * pageSize)
.setMaxResults(pageSize);
list=query.list();
ts.commit();
} catch (HibernateException e) {
log.error("Occur an error when get list by hql : "+hql,e);
}finally{
//closeSession();
return list;
}
}
@SuppressWarnings("finally")
protected List getDataListByHql(String hql){
List list=null;
Session session=openSession();
Transaction ts=session.getTransaction();
try {
ts.begin();
Query query=session.createQuery(hql);
//.setCacheable(true)
//.setCacheMode(CacheMode.NORMAL);
list=query.list();
ts.commit();
} catch (HibernateException e) {
ts.rollback();
log.error("Error to get a list by hql :"+hql,e);
e.printStackTrace();
}finally{
//closeSession();
return list;
}
}
/**
*
* @param hql
* @return
* @TODO
*/
@SuppressWarnings("finally")
protected Integer getDataCountByHql(String hql){
int count=0;
Session session=openSession();
Transaction ts=session.getTransaction();
try {
ts.begin();
count=(Integer)session.createQuery(hql).list().iterator().next();
ts.commit();
} catch (HibernateException e) {
ts.rollback();
log.error("Error to get record count");
}finally{
closeSession();
return count;
}
}
@SuppressWarnings("finally")
protected Integer getDataCountByHql(String tempHql,Map paramMap){
int count=0;
Session session=openSession();
Transaction ts=session.getTransaction();
try {
ts.begin();
Query query=session.createQuery(tempHql);
query=fillQuery(query,paramMap);
count=(Integer)query.uniqueResult();
ts.commit();
} catch (HibernateException e) {
log.error("Error to count the record count",e);
}finally{
closeSession();
return count;
}
}
/**
*
* @param sql
* @return
* @TODO get data object by specify sql
*/
protected Object getDataBySql(String sql){
return null;
}
/**
*
* @return
* @TODO
*/
protected Session openSession(){
return HibernateUtil.currentSession();
}
/**
*
*
* @TODO
*/
protected void closeSession(){
HibernateUtil.closeSession();
}
/**
*
* @param object
* @return
* @TODO
*/
@SuppressWarnings("finally")
protected boolean saveData(Object object){
boolean isSuccess=false;
Session session = openSession();
Transaction ts=session.getTransaction();
try {
ts.begin();
session.save(object);
session.flush();
ts.commit();
isSuccess=true;
} catch (HibernateException e) {
ts.rollback();
log.error("Error to save a data object to database",e);
}finally{
closeSession();
return isSuccess;
}
}
protected int deleteGarbage(List<Garbage> garbageList){
int resCount=0;
for(Iterator it=garbageList.iterator();it.hasNext();){
Garbage garbage=(Garbage)it.next();
if(deleteGarbage(garbage)){
resCount++;
}
}
return resCount;
}
@SuppressWarnings("finally")
protected boolean deleteGarbage(Garbage garbage){
boolean isSuccess=false;
Session session=openSession();
Transaction ts=session.getTransaction();
try {
ts.begin();
session.delete(garbage);
StringBuffer sb=new StringBuffer();
sb.append(Config.getFileRootPath());
sb.append("/");
sb.append(garbage.getParentCatalog().getCatalogId());
sb.append("/");
sb.append(garbage.getChildCatalog().getCatalogId());
sb.append("/");
Date date=garbage.getCreateDate();
Calendar calendar=Calendar.getInstance();
calendar.setTime(date);
sb.append(calendar.get(Calendar.YEAR));
sb.append("/");
sb.append(calendar.get(Calendar.MONTH)+1);
sb.append("/");
sb.append(calendar.get(Calendar.DAY_OF_MONTH));
String oldDirectoryName=sb.toString();
sb=new StringBuffer();
sb.append(Config.getGarbageRootPath());
sb.append("/");
sb.append(garbage.getParentCatalog().getCatalogId());
sb.append("/");
sb.append(garbage.getChildCatalog().getCatalogId());
String newDirectoryName=sb.toString();
FileUtil.moveFile(garbage.getImageName(),oldDirectoryName,newDirectoryName);
ts.commit();
isSuccess=true;
} catch (HibernateException e) {
ts.rollback();
log.error("Error to delete data object ",e);
}finally{
return isSuccess;
}
}
@SuppressWarnings("finally")
protected boolean saveImage(Image image,File file){
StringBuffer directory=null;
String destFileName=null;
boolean isSuccess=false;
Session session =openSession();
Transaction ts=session.getTransaction();
try {
ts.begin();
//String suffix=file.getName().substring(file.getName().lastIndexOf("."));
//String destFileName=GeneratorUtil.getChar10()+suffix;
destFileName=image.getFileName();
//image.setFileName(destFileName);
session.save(image);
directory=new StringBuffer();
directory.append(Config.getFileRootPath());
directory.append("/");
directory.append(image.getParentCatalog().getCatalogId());
directory.append("/");
directory.append(image.getChildCatalog().getCatalogId());
directory.append("/");
Calendar calendar=Calendar.getInstance();
directory.append(calendar.get(Calendar.YEAR));
directory.append("/");
int month=calendar.get(Calendar.MONTH)+1;
directory.append(month<10 ? "0"+month : month);
directory.append("/");
directory.append(calendar.get(Calendar.DAY_OF_MONTH));
FileUtil.saveFile(file,directory.toString(),destFileName);
ts.commit();
isSuccess=true;
} catch (HibernateException e) {
ts.rollback();
log.error("Error to save a image data object"+image.toString());
try {
FileUtil.deleteFile(directory.toString(),destFileName);
} catch (IOException e1) {
log.error("Error to delete the uploaded file when occured a HibernateException",e1);
}
}catch (IOException ex) {
log.error("Error to upload file :"+file.getAbsolutePath());
}finally{
return isSuccess;
}
}
@SuppressWarnings("finally")
protected boolean updateImage(Image image,String oldPCatalogId,String oldCCatalogId){
StringBuffer directory=null;
StringBuffer oldDirectory=null;
boolean isSuccess=false;
Session session =openSession();
Transaction ts=session.getTransaction();
try {
ts.begin();
session.update(image);
if(!oldPCatalogId.equals(image.getParentCatalog().getCatalogId())||!oldCCatalogId.equals(image.getChildCatalog().getCatalogId())){
directory=new StringBuffer();
oldDirectory=new StringBuffer();
directory.append(Config.getFileRootPath());
oldDirectory.append(Config.getFileRootPath());
directory.append("/");
oldDirectory.append("/");
directory.append(image.getParentCatalog().getCatalogId());
oldDirectory.append(oldPCatalogId);
directory.append("/");
oldDirectory.append("/");
directory.append(image.getChildCatalog().getCatalogId());
oldDirectory.append(oldCCatalogId);
directory.append("/");
oldDirectory.append("/");
Calendar calendar=Calendar.getInstance();
calendar.setTime(image.getCreateDate());
directory.append(calendar.get(Calendar.YEAR));
oldDirectory.append(calendar.get(Calendar.YEAR));
directory.append("/");
oldDirectory.append("/");
int month=calendar.get(Calendar.MONTH)+1;
directory.append(month<10 ? "0"+month : month);
oldDirectory.append(month<10 ? "0"+month : month);
directory.append("/");
oldDirectory.append("/");
directory.append(calendar.get(Calendar.DAY_OF_MONTH));
oldDirectory.append(calendar.get(Calendar.DAY_OF_MONTH));
FileUtil.moveFile(image.getFileName(),oldDirectory.toString(),directory.toString());
}
ts.commit();
isSuccess=true;
} catch (HibernateException e) {
ts.rollback();
log.error("Error to update a image data object"+image.toString());
try {
FileUtil.moveFile(image.getFileName(),directory.toString(),oldDirectory.toString());
} catch (IOException e1) {
log.error("Error to move the file from "+directory.toString()+" to "+oldDirectory.toString()+" when occured a HibernateException",e1);
}
}catch (IOException ex) {
log.error("Error to move the file from "+oldDirectory.toString()+" to "+directory.toString()+" when occured a IOException");
}finally{
return isSuccess;
}
}
/**
*
* @param object
* @return
* @TODO
*/
@SuppressWarnings("finally")
protected boolean updateData(Object object/*,Serializable key*/){
boolean isSuccess=false;
Session session=openSession();
Transaction ts=session.getTransaction();
try {
ts.begin();
// Class clazz=object.getClass();
// Object updateObject=session.get(clazz,key);
// if(updateObject!=null){
// Field[] fs=clazz.getDeclaredFields();
// System.out.println("============"+fs.length);
// for(int i=0;i<fs.length;i++){
// Field field=fs[i];
// System.out.println(field.get(object));
// field.set(updateObject, field.get(object));
// }
// }
//
// session.update(updateObject);
session.update(object);
ts.commit();
isSuccess=true;
} catch (HibernateException e) {
ts.rollback();
e.printStackTrace();
log.error("Error to update a data object",e);
}
// catch (IllegalArgumentException e) {
// e.printStackTrace();
// }catch (IllegalAccessException e) {
// e.printStackTrace();
// }
finally{
closeSession();
return isSuccess;
}
}
@SuppressWarnings("finally")
protected int updateData(String hql,String param,Object[] paramValue){
int count=0;
Session session=openSession();
Transaction ts=session.getTransaction();
try {
ts.begin();
count = session.createQuery(hql)
//.setCacheable(true)
// .setCacheMode(CacheMode.NORMAL)
.setParameterList(param,paramValue)
.executeUpdate();
ts.commit();
} catch (HibernateException e) {
log.error("Error to update data by hql "+ hql +"paramValue"+paramValue.toString());
}finally{
return count;
}
}
@SuppressWarnings("finally")
protected int updateData(String hql){
int count=0;
Session session=openSession();
Transaction ts=session.getTransaction();
try {
ts.begin();
count=session.createQuery(hql)
//.setCacheable(true)
//.setCacheMode(CacheMode.NORMAL)
.executeUpdate();
ts.commit();
} catch (HibernateException e) {
ts.rollback();
log.error("Error to update by hql :"+hql);
}finally{
return count;
}
}
/**
*
* @param clazz
* @param paramName
* @param paramValue
* @return
* @TODO
*/
protected boolean deleteData(Class clazz,String paramName,String paramValue){
int count=0;
StringBuffer sb=new StringBuffer();
sb.append("delete ");
sb.append(clazz.getSimpleName());
sb.append(" where ");
sb.append(paramName);
sb.append(" ='");
sb.append(paramValue);
sb.append("'");
count=deleteDataByHql(sb.toString());
return count > 0 ? true : false;
}
/**
*
* @param clazz
* @param keyValue
* @return
* @TODO
*/
@SuppressWarnings("finally")
protected boolean deleteData(Class clazz,Serializable keyValue){
boolean isSuccess=false;
Session session=openSession();
Transaction ts=session.getTransaction();
try {
ts.begin();
Object object=session.get(clazz,keyValue);
if(object!=null){
session.delete(object);
isSuccess=true;
}
ts.commit();
} catch (HibernateException e) {
ts.rollback();
e.printStackTrace();
}finally{
closeSession();
return isSuccess;
}
}
/**
*
* @param hql
* @param param
* @param paramValue
* @return
* @TODO
*/
@SuppressWarnings("finally")
protected int deleteData(String hql,String param,Object[] paramValue){
int count=0;
Session session=openSession();
Transaction ts=session.getTransaction();
try {
ts.begin();
count=session.createQuery(hql)
//.setCacheable(true)
//.setCacheMode(CacheMode.NORMAL)
.executeUpdate();
ts.commit();
} catch (HibernateException e) {
ts.rollback();
log.error("Error to delete data by hql :"+hql +" paramValue "+paramValue.toString());
}finally{
return count;
}
}
@SuppressWarnings("finally")
protected int deleteData(String hql){
int count=0;
Session session=openSession();
Transaction ts=session.getTransaction();
try {
ts.begin();
count=session.createQuery(hql)
//.setCacheable(true)
//.setCacheMode(CacheMode.NORMAL)
.executeUpdate();
ts.commit();
} catch (HibernateException e) {
ts.rollback();
log.error("Error to delete data by hql :"+hql);
}finally{
return count;
}
}
/**
*
* @param hql
* @return
* @TODO delete record batch not cascade delete
*/
@SuppressWarnings("finally")
protected int deleteDataByHql(String hql){
int count=0;
Session session=openSession();
Transaction ts=null;
try {
ts=session.beginTransaction();
count=session.createQuery(hql)
//.setCacheable(true)
//.setCacheMode(CacheMode.NORMAL)
.executeUpdate();
ts.commit();
} catch (HibernateException e) {
ts.rollback();
log.error("Error to delete data object by hql : " +hql,e);
}finally{
closeSession();
return count;
}
}
/**
*
* @param tableName
* @param theClass
* @param where
* @param arg
* @return
* @TODO
*/
protected List executeSQLQuery(String tableName, Class theClass, String where, Object arg[]) {
Session session = openSession();
SQLQuery q = session.createSQLQuery( "select {" + tableName + ".*} from " + tableName + " where " + where);
//System.out.println( "select {" + tableName + ".*} from " + tableName + " where " + where);
q.addEntity( tableName, theClass );
q=fillQuery(q,arg);
List list = q.list();
// closeSession();
return list;
}
private SQLQuery fillQuery(SQLQuery query,Object[] arg){
int l = arg.length;
for (int i = 0; i < l; i++) {
if (arg[i] instanceof Integer) {
query.setInteger( i, ((Integer)arg[i]).intValue() );
}
else if (arg[i] instanceof Short) {
query.setShort( i, ((Short)arg[i]).shortValue() );
}
else if (arg[i] instanceof Long) {
query.setLong( i, ((Long)arg[i]).longValue() );
}
else if (arg[i] instanceof Double) {
query.setDouble( i, ((Double) arg[i]).doubleValue() );
}
else if (arg[i] instanceof Float) {
query.setFloat( i, ((Float) arg[i]).floatValue() );
}
else if (arg[i] instanceof BigDecimal) {
query.setBigDecimal( i, (BigDecimal) arg[i] );
}
else if (arg[i] instanceof BigInteger) {
query.setBigInteger( i, (BigInteger) arg[i] );
}
else if (arg[i] instanceof String) {
query.setString( i, (String) arg[i] );
}
else if (arg[i] instanceof Boolean) {
query.setBoolean( i, ((Boolean) arg[i]).booleanValue() );
}
else if (arg[i] instanceof Date) {
query.setDate( i, (Date) arg[i] );
}
else if (arg[i] instanceof Date) {
query.setDate( i, (Date) arg[i] );
}
else {
throw new IllegalStateException( "bad type" );
}
}
return query;
}
/**
*
* @param query
* @param paramMap
* @return
* @TODO
*/
private Query fillQuery(Query query,Map paramMap){
for(Iterator it=paramMap.keySet().iterator();it.hasNext();){
String key=(String)it.next();
Object object=paramMap.get(key);
if (object instanceof Integer) {
query.setInteger( key, ((Integer)object).intValue() );
}
else if (object instanceof Short) {
query.setShort( key, ((Short)object).shortValue() );
}
else if (object instanceof Long) {
query.setLong( key, ((Long)object).longValue() );
}
else if (object instanceof Double) {
query.setDouble( key, ((Double) object).doubleValue() );
}
else if (object instanceof Float) {
query.setFloat( key, ((Float) object).floatValue() );
}
else if (object instanceof BigDecimal) {
query.setBigDecimal( key, (BigDecimal) object );
}
else if (object instanceof BigInteger) {
query.setBigInteger( key, (BigInteger) object );
}
else if (object instanceof String) {
query.setString( key, (String) object );
}
else if (object instanceof Boolean) {
query.setBoolean( key, ((Boolean) object).booleanValue() );
}
else if (object instanceof Date) {
query.setDate( key, (Date) object );
}
else if (object instanceof Date) {
query.setDate( key, (Date) object );
}
else {
throw new IllegalStateException( "bad type" );
}
}
return query;
}
protected StringBuffer checkHql(StringBuffer sb){
if(log.isDebugEnabled()){
log.debug("sb before delete="+sb.toString());
}
int start=sb.indexOf("where");
