SqlServer通过SQL语句获取处理器的方法步骤

来源：www.45fan.com 2016-03-03 18:41:32

在SQL SERVER中如何通过SQL语句获取服务器硬件和系统信息呢？下面介绍一下如何通过SQL语句获取处理器(CPU)、内存（Memory）、磁盘（Disk）以及操作系统相关信息。如有不足和遗漏，敬请补充。谢谢！

一：查看数据库服务器CPU的信息

---SQL 1:获取数据库服务器的CPU型号

EXEC xp_instance_regread
 'HKEY_LOCAL_MACHINE',
 'HARDWARE\DESCRIPTION\System\CentralProcessor\0',
 'ProcessorNameString';

---SQL 2:获取数据库服务器CPU核数等信息(只适用于SQL 2005以及以上版本数据库)

/*************************************************************************************
--cpu_count    :指定系统中的逻辑 CPU 数
--hyperthread_ratio  :指定一个物理处理器包公开的逻辑内核数与物理内核数的比.虚拟机
--       中可以表示每个虚拟插槽的核数。虚拟中[Physical CPU Count]其实
--       表示虚拟插槽数
*************************************************************************************/
SELECT s.cpu_count      AS [Loggic CPU Count]
  ,s.hyperthread_ratio    AS [Hyperthread Ratio]
  ,s.cpu_count/s.hyperthread_ratio AS [Physical CPU Count]
FROM sys.dm_os_sys_info s OPTION (RECOMPILE);

---SQL 3:获取数据库服务器CPU核数(适用于所有版本)

CREATE TABLE #TempTable
 (
  [Index] VARCHAR(2000) ,
  [Name] VARCHAR(2000) ,
  [Internal_Value] VARCHAR(2000) ,
  [Character_Value] VARCHAR(2000)
 );
INSERT INTO #TempTable
  EXEC xp_msver;
SELECT Internal_Value AS VirtualCPUCount
FROM #TempTable
WHERE Name = 'ProcessorCount';
DROP TABLE #TempTable;
GO

---SQL 4：在老外博客中看到一个计算CPU相关信息的SQL，不过虚拟机计算有点小问题，我修改了一下。

DECLARE @xp_msver TABLE (
 [idx] [int] NULL
 ,[c_name] [varchar](100) NULL
 ,[int_val] [float] NULL
 ,[c_val] [varchar](128) NULL
 )
INSERT INTO @xp_msver
EXEC ('[master]..[xp_msver]');;
WITH [ProcessorInfo]
AS (
 SELECT ([cpu_count] / [hyperthread_ratio]) AS [number_of_physical_cpus]
  ,CASE
   WHEN hyperthread_ratio = cpu_count
    THEN cpu_count
   ELSE (([cpu_count] - [hyperthread_ratio]) / ([cpu_count] / [hyperthread_ratio]))
   END AS [number_of_cores_per_cpu]
  ,CASE
   WHEN hyperthread_ratio = cpu_count
    THEN cpu_count
   ELSE ([cpu_count] / [hyperthread_ratio]) * (([cpu_count] - [hyperthread_ratio]) / ([cpu_count] / [hyperthread_ratio]))
   END AS [total_number_of_cores]
  ,[cpu_count] AS [number_of_virtual_cpus]
  ,(
   SELECT [c_val]
   FROM @xp_msver
   WHERE [c_name] = 'Platform'
   ) AS [cpu_category]
 FROM [sys].[dm_os_sys_info]
 )
SELECT [number_of_physical_cpus]
 ,[number_of_cores_per_cpu]
 ,[total_number_of_cores]
 ,[number_of_virtual_cpus]
 ,LTRIM(RIGHT([cpu_category], CHARINDEX('x', [cpu_category]) - 1)) AS [cpu_category]
FROM [ProcessorInfo]
---查看虚拟机CPU信息
DECLARE @xp_msver TABLE (
 [idx] [int] NULL
 ,[c_name] [varchar](100) NULL
 ,[int_val] [float] NULL
 ,[c_val] [varchar](128) NULL
 )
INSERT INTO @xp_msver
EXEC ('[master]..[xp_msver]');;
WITH [ProcessorInfo]
AS (
 SELECT ([cpu_count] / [hyperthread_ratio]) AS [number_of_physical_cpus]
  ,[hyperthread_ratio] AS [number_of_cores_per_cpu]
  ,[cpu_count] AS [total_number_of_cores]
  ,[cpu_count] AS [number_of_virtual_cpus]
  ,(
   SELECT [c_val]
   FROM @xp_msver
   WHERE [c_name] = 'Platform'
   ) AS [cpu_category]
 FROM [sys].[dm_os_sys_info]
 )
SELECT [number_of_physical_cpus]
 ,[number_of_cores_per_cpu]
 ,[total_number_of_cores]
 ,[number_of_virtual_cpus]
 ,LTRIM(RIGHT([cpu_category], CHARINDEX('x', [cpu_category]) - 1)) AS [cpu_category]
FROM [ProcessorInfo]

二：查看数据库服务器内存的信息

能否通过SQL语句获取服务器的物理内存大小？内存条型号？虚拟内存大小？内存使用情况？目前我所知道的只能通过SQL语句获取服务器物理内存大小，内存的使用情况。至于内存条型号，系统虚拟内存大小，暂时好像还无法通过SQL语句获龋

查看服务器的物理内存情况

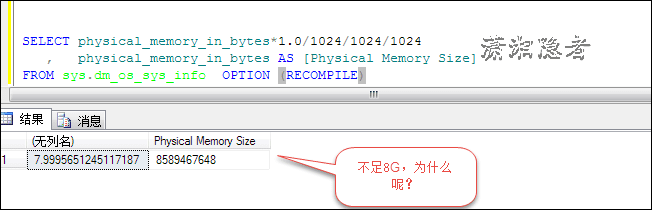

如下所示，从sys.dm_os_sys_info里面获取的physical_memory_in_bytes 或physical_memory_kb 的值总是低于实际物理内存。暂时不清楚具体原因（还未查到相关资料），所以计算大小有出入，要获取实际的物理内存，就必须借助CEILING函数。

SqlServer通过SQL语句获取处理器的方法步骤

--SQL 1：获取数据库服务器物理内存数(适用于所有版本)

 CREATE TABLE #TempTable
 (
  [Index] VARCHAR(2000) ,
  [Name] VARCHAR(2000) ,
  [Internal_Value] VARCHAR(2000) ,
  [Character_Value] VARCHAR(2000)
 );
INSERT INTO #TempTable
  EXEC xp_msver;
SELECT Internal_Value/1024 AS PhysicalMemory
FROM #TempTable
WHERE Name = 'PhysicalMemory';
DROP TABLE #TempTable;
GO

---SQL 2：适用于SQL Server 2005、SQL Server 2008

 SELECT CEILING(physical_memory_in_bytes*1.0/1024/1024/1024) AS [Physical Memory Size]
FROM sys.dm_os_sys_info OPTION (RECOMPILE)
SELECT physical_memory_in_bytes*1.0/1024/1024/1024
 , physical_memory_in_bytes AS [Physical Memory Size]
FROM sys.dm_os_sys_info OPTION (RECOMPILE)

---SQL 3：适用于SQL Server 2012 到 SQL Server 2014

 SELECT CEILING(physical_memory_kb*1.0/1024/1024) AS [Physical Memory Size]
FROM sys.dm_os_sys_info OPTION (RECOMPILE);

---SQL 4：适用于SQL Server 2008以及以上的版本:查看物理内存大小，已经使用的物理内存以及还剩下的物理内存。

SELECT CEILING(total_physical_memory_kb * 1.0 / 1024 / 1024) AS [Physical Memory Size]
  ,CAST(available_physical_memory_kb * 1.0 / 1024 / 1024
            AS DECIMAL(8, 4)) AS [Unused Physical Memory]
  ,CAST(( total_physical_memory_kb - available_physical_memory_kb ) * 1.0
  / 1024 / 1024 AS DECIMAL(8, 4))       AS [Used Physical Memory]
  ,CAST(system_cache_kb*1.0 / 1024/1024 AS DECIMAL(8, 4)) AS [System Cache Size]
FROM sys.dm_os_sys_memory

三：查看数据库服务器硬盘的信息

如下所示，我们可以通过下面脚本获取服务器的各个磁盘的使用情况。但是无法获取磁盘的型号、转速之类的信息。

SET NOCOUNT ON
DECLARE @Result  INT;
DECLARE @objectInfo  INT;
DECLARE @DriveInfo  CHAR(1);
DECLARE @TotalSize  VARCHAR(20);
DECLARE @OutDrive  INT;
DECLARE @UnitMB  BIGINT;
DECLARE @FreeRat  FLOAT;
SET @UnitMB = 1048576;
--创建临时表保存服务器磁盘容量信息
CREATE TABLE #DiskCapacity
(
[DiskCD]  CHAR(1) ,
FreeSize  INT  ,
TotalSize  INT
);
INSERT #DiskCapacity([DiskCD], FreeSize )
EXEC master.dbo.xp_fixeddrives;
EXEC sp_configure 'show advanced options', 1
RECONFIGURE WITH OVERRIDE;
EXEC sp_configure 'Ole Automation Procedures', 1;
RECONFIGURE WITH OVERRIDE;
EXEC @Result = master.sys.sp_OACreate 'Scripting.FileSystemObject',@objectInfo OUT;
DECLARE CR_DiskInfo CURSOR LOCAL FAST_FORWARD
FOR
SELECT DiskCD FROM #DiskCapacity
ORDER by DiskCD
OPEN CR_DiskInfo;
FETCH NEXT FROM CR_DiskInfo INTO @DriveInfo
WHILE @@FETCH_STATUS=0
BEGIN
EXEC @Result = sp_OAMethod @objectInfo,'GetDrive', @OutDrive OUT, @DriveInfo
EXEC @Result = sp_OAGetProperty @OutDrive,'TotalSize', @TotalSize OUT
UPDATE #DiskCapacity
SET TotalSize=@TotalSize/@UnitMB
WHERE DiskCD=@DriveInfo
FETCH NEXT FROM CR_DiskInfo INTO @DriveInfo
END
CLOSE CR_DiskInfo
DEALLOCATE CR_DiskInfo;
EXEC @Result=sp_OADestroy @objectInfo
EXEC sp_configure 'show advanced options', 1
RECONFIGURE WITH OVERRIDE;
EXEC sp_configure 'Ole Automation Procedures', 0;
RECONFIGURE WITH OVERRIDE;
EXEC sp_configure 'show advanced options', 0
RECONFIGURE WITH OVERRIDE;
SELECT DiskCD  AS [Drive CD]  ,
 STR(TotalSize*1.0/1024,6,2)  AS [Total Size(GB)] ,
 STR((TotalSize - FreeSize)*1.0/1024,6,2)  AS [Used Space(GB)] ,
 STR(FreeSize*1.0/1024,6,2)  AS [Free Space(GB)] ,
 STR(( TotalSize - FreeSize)*1.0/(TotalSize)* 100.0,6,2) AS [Used Rate(%)] ,
 STR(( FreeSize * 1.0/ ( TotalSize ) ) * 100.0,6,2)  AS [Free Rate(%)]
FROM #DiskCapacity;
DROP TABLE #DiskCapacity;

四：查看操作系统信息

通过下面SQL语句，我们可以查看操作系统版本、补盯语言等信息

--创建临时表保存语言版本信息
CREATE TABLE #Language
(
[LanguageDtl]   NVARCHAR(64) ,
[os_language_version] INT
);
INSERT INTO #Language
SELECT 'English - United States'    ,1033 UNION ALL
SELECT 'English - United Kingdom'    ,2057 UNION ALL
SELECT 'Chinese - People''s Republic of China',2052 UNION ALL
SELECT 'Chinese - Singapore'     ,4100 UNION ALL
SELECT 'Chinese - Taiwan'      ,1028 UNION ALL
SELECT 'Chinese - Hong Kong SAR'    ,3076 UNION ALL
SELECT 'Chinese - Macao SAR'     ,5124;
WITH SystemVersion(SystemInfo,ReleaseNo)
AS
(
SELECT 'Windows 10' ,
  '10.0*'
UNION ALL
SELECT 'Windows Server 2016 Technical Preview' ,
  '10.0*'
UNION ALL
SELECT 'Windows 8.1' ,
  '6.3*'
UNION ALL
SELECT 'Windows Server 2012 R2' ,
  '6.3'
UNION ALL
SELECT 'Windows 8' ,
  '6.2'
UNION ALL
SELECT 'Windows Server 2012' ,
  '6.2'
UNION ALL
SELECT 'Windows 7' ,
  '6.1'
UNION ALL
SELECT 'Windows Server 2008 R2' ,
  '6.1'
UNION ALL
SELECT 'Windows Server 2008' ,
  '6.0'
UNION ALL
SELECT 'Windows Vista' ,
  '6.0'
UNION ALL
SELECT 'Windows Server 2003 R2' ,
  '5.2'
UNION ALL
SELECT 'Windows Server 2003' ,
  '5.2'
UNION ALL
SELECT 'Windows XP 64-Bit Edition' ,
  '5.2'
UNION ALL
SELECT 'Windows XP' ,
  '5.1'
UNION ALL
SELECT 'Windows 2000' ,
  '5.0'
)
SELECT s.SystemInfo
  ,w.windows_service_pack_level
  ,l.LanguageDtl
FROM sys.dm_os_windows_info w
INNER JOIN SystemVersion s ON w.windows_release=s.ReleaseNo
INNER JOIN #Language l ON l.os_language_version = w.os_language_version;
DROP TABLE #Language;

注意：

1：如上所示，临时表#Language的数据此处只列了几条常用的数据，如需全部数据，参考https://msdn.microsoft.com/zh-CN/goglobal/bb964664.aspx自行补充。

2：操作系统的版本信息的数据来源于https://msdn.microsoft.com/zh-CN/library/ms724832(VS.85).aspx

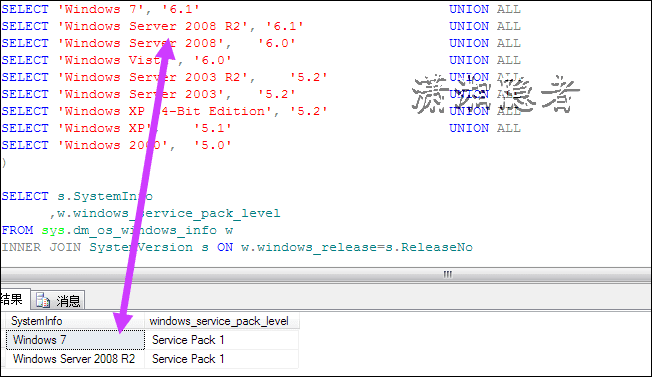

有可能出现不同操作系统具有相同Version number值，例如Windows 7 和Windows Server 2008 R2的Version numberd都为6.1。导致下面查询结果出现多条记录（如下所示）。一般要酌情判断（如果生产服务器都为Windows服务器，可以剔除Windows XP、Windows 7这类数据）。

SqlServer通过SQL语句获取处理器的方法步骤

ps:使用SQL语句获得服务器名称和IP地址

使用SQL语句获得服务器名称和IP地址获取服务器名称：

SELECT SERVERPROPERTY('MachineName')
select @@SERVERNAME
select HOST_NAME()

获取IP地址可以使用xp_cmdshell执行ipconfig命令：

--开启xp_cmdshell
exec sp_configure'show advanced options', 1
reconfigure with override
exec sp_configure'xp_cmdshell', 1
reconfigure with override
exec sp_configure'show advanced options', 0
reconfigure with override
go
begin
declare @ipline varchar(200)
declare @pos int
declare @ip varchar(40)
set nocount on
set @ip = null
 if object_id('tempdb..#temp') is not null drop table #temp
 create table #temp(ipline varchar(200))
 insert #temp exec master..xp_cmdshell'ipconfig'
 select @ipline = ipline
 from #temp
 where upper(ipline) like '%IPv4 地址%'--这里需要注意一下，系统不同这里的匹配值就不同
 if @ipline is not null
 begin
  set @pos = charindex(':',@ipline,1);
  set @ip = rtrim(ltrim(substring(@ipline ,
  @pos + 1 ,
  len(@ipline) - @pos)))
 end
 select distinct(rtrim(ltrim(substring(@ipline ,
 @pos + 1 ,
 len(@ipline) - @pos)))) as ipaddress from #temp
drop table #temp
set nocount off
end
go

但是很多情况下由于安全问题是不允许使用xp_cmdshell，可以通过查询SYS.DM_EXEC_CONNECTIONS ：

SELECT SERVERNAME = CONVERT(NVARCHAR(128),SERVERPROPERTY('SERVERNAME'))
,LOCAL_NET_ADDRESS AS 'IPAddressOfSQLServer'
,CLIENT_NET_ADDRESS AS 'ClientIPAddress'
 FROM SYS.DM_EXEC_CONNECTIONS WHERE SESSION_ID = @@SPID
